Introduction

Do you know when it’s time to change the batteries in your Weiser lock? Here are some hints:

  1. Your electronic lock flashes red.
  2. Your keypad doesn’t light up.
  3. If you have a home security provider, they’ll probably let you know!

In this guide, you will learn how to change the batteries of your Weiser Smartcode 10 Touchscreen Electronic Lock.

(Try saying that ten times fast!)

Before starting this guide, make sure all home security connected to the door lock is disarmed. Let’s begin!

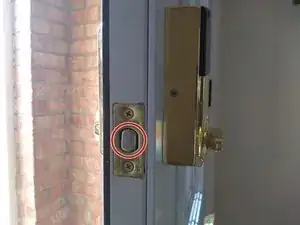

  1. StCCdQLJJQPKfKCO
    • Unlock your door and open it.

    • Make sure the bolt/latch is fully inside the door before you continue.

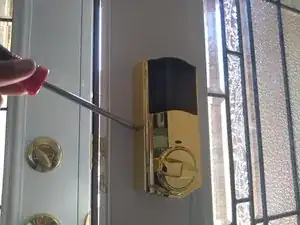

  2. ioPwnjwCXy4r1cvG
    • Using the Phillips #1 screwdriver, remove the three 8 mm screws on the left, right and bottom side of the cover.

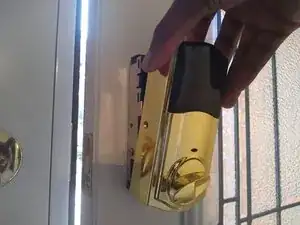

  3. YadLbGcfqP6qrDGy
    • Take the exterior cover off the door lock.

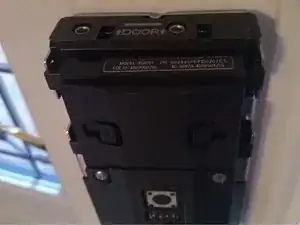

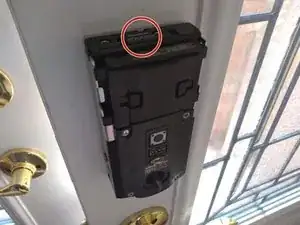

  4. W1Np3vdkXCQ5FIoI
    W1Np3vdkXCQ5FIoI
    QKWORGqXE3y5vtHl
    • Find the battery pack (marked "DOOR" in between two arrows) at the top of the lock.

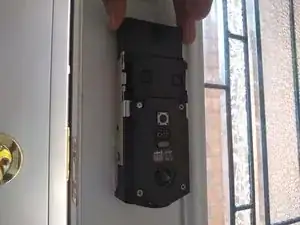

  5. CaS2GqjHb3Xl2nVa
    CaS2GqjHb3Xl2nVa
    S6ANO2WmYoklqoMx
    • Slide the battery pack upwards.

    • Turn the pack over to reveal the batteries. Replace the batteries.

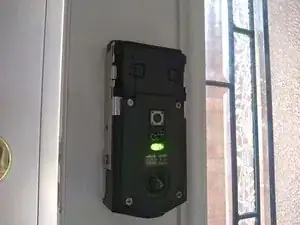

  6. XIEQHGl6DNqL2ciA
    • Reinsert the battery pack with the word "DOOR" facing you.

    • Wait until you see a green LED light flashing and/or hear two beeps to indicate working batteries.

    • If there is no green light, repeat steps 5 and 6. Check to see if the batteries are placed correctly or if newer batteries are required.

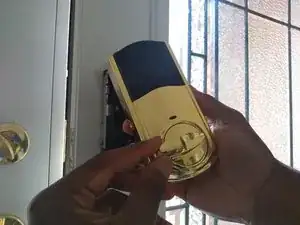

  7. LaSdWK2JXVt5c1ok
    • Ensure that the bolt/latch is still inside the door.

    • Take the exterior cover and point the narrow end of the knob to the right. Place the cover on the lock and reinsert the screws.

    • Try not to fasten the screws too tightly as they could get damaged in the process.

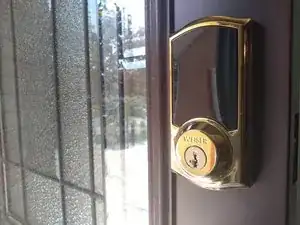

  8. TsRWEkmYBubFm2Ko
    TsRWEkmYBubFm2Ko

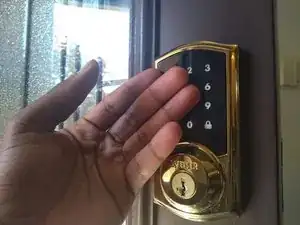

    bVVkK4ecCwYXNUg6
    • To confirm the finished repair, go to the front of the door and place the back of your hand on the touchscreen to activate the keypad.

Conclusion

Congratulations! Make sure to redo this process each year to ensure your device continues to work!
