Introduction

Use this guide to replace a warped or broken window operator link in your awning window.

 The window operator is a mechanical piece that enables the opening and closing of an awning window easily. Warped or broken links on a window interfere with the opening and closing of the window. The links are inexpensive to replace, and this fix can be done in a matter of minutes. Additionally, repairing a warped link can help to minimize a functioning window operator waste.

Before using this guide, make sure to verify if the damaged part is the link and not the operator. Sometimes the aluminum window bents from the outside due to slams from tree branches, kids playing outside, etc. That could mean that the operator and the link are functioning well, but the window is stuck close. That can be resolved by finding the bent and with some pliers unbending the piece into its original state.

 In Step 3, make sure that you hold the self-retaining nut from the window operator. Since the nut is a small piece, it may be prone to being misplaced. Also, the window operator can be stuck in place, after removing the bolts you can gently tap the operator to make it loose.

 Make sure you have the correct window operator link length before starting this guide.

  1. NOMpMcrSrnAS4UQC
    NOMpMcrSrnAS4UQC
    vV6USr1WReLDMl1V

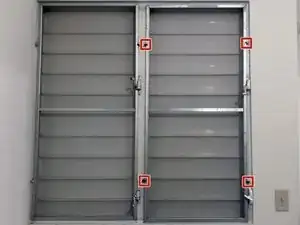

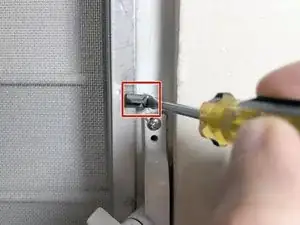

    • Remove the four (4) window clips that holds the screen.

    • Your amount of window clips may vary depending on the size of your window.

    • Use the Flathead 4 mm Screwdriver to loosen the clip. The clip doesn't need to be removed.

    • Remove the screen and put it aside.

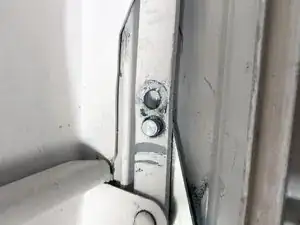

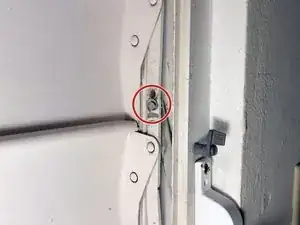

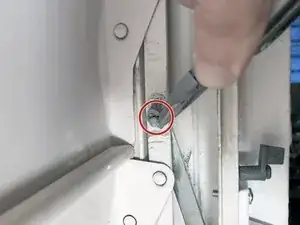

  2. tA3PPWelGEMsTu1D
    tA3PPWelGEMsTu1D
    PTJdvFFCwWrlBsHg
    FEbHC4XtbEnxhqXA
  3. Y6P1rKEhAPKcFO4A
    Y6P1rKEhAPKcFO4A
    vSyNuNnh2WupxnEc
    OCgBwTa4JxWqHZcS

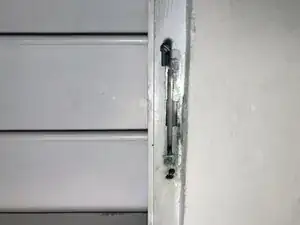

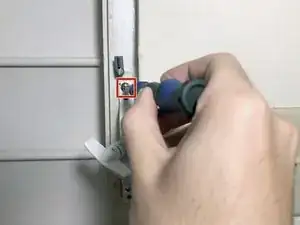

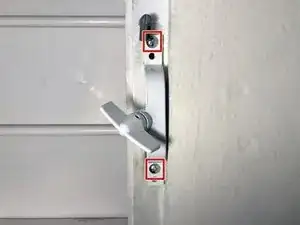

    • Using the Phillips #2 Screwdriver , remove the two bolts that are holding the operator into the window frame.

    • Behind the window, you will have one self retaining nut per bolt.

    • In some cases, you will need to play with the operator in order to take it out due to the small tolerances in the window.

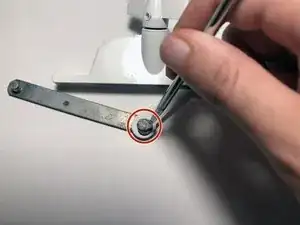

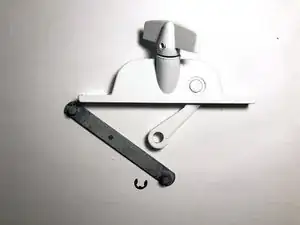

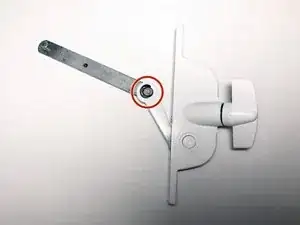

  4. oQ5bduOVR5ebc1qM
    oQ5bduOVR5ebc1qM
    4wL2hYbbVLJgKZSN
    F63lE3j5dANvpRXr
  5. 3d4NJXHUAF3O6a5E
    3d4NJXHUAF3O6a5E
    u5LsvJ4v6iKDnNZZ
    3mLZkbylkj1tLvwB

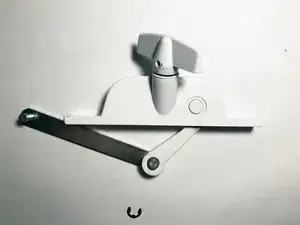

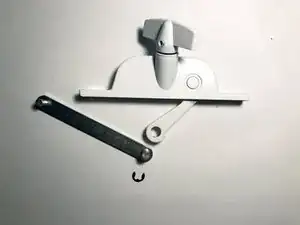

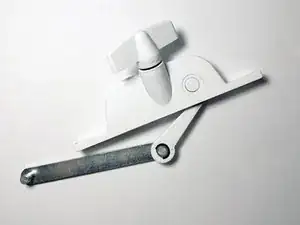

    • Once the warped or broken link is removed, follow the Step 4 in reverse order.

    • You may use the Large Needle Nose Pliers to force the e-clip into place.

Conclusion

To reassemble your device, follow from step three (3) to one (1) in reverse order.
