XMAX V3 Pro Disassembly

Written By: ShellingRook27
  • Comments: 1
XMAX V3 Pro Disassembly

Difficulty

Difficult

Steps

18

Time Required

30 minutes - 1 hour

Introduction

  1. 5en5eU6X3ScYyKwO
    5en5eU6X3ScYyKwO
    yte2x6QtPxUcXWAh
    hG23WYS1tvvHVLgr

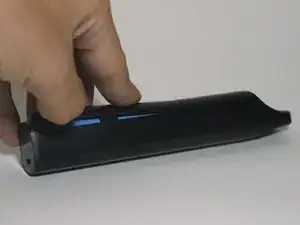

    • Remove battery door

  2. fobdyVeEYfwa1MfG
    fobdyVeEYfwa1MfG
    QYVLuUqKJPcrIkG5

    • Remove the battery from the device

  3. LrQVNTDlDjlpTOx1
    LrQVNTDlDjlpTOx1
    QSLTMtZ5yywEJYKF
    1WnsViDRf6Z3eks3

    • Apply heat from a hair dryer to help soften the glue

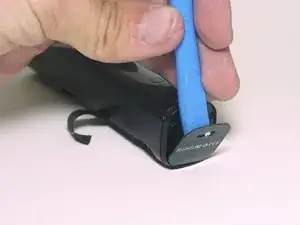

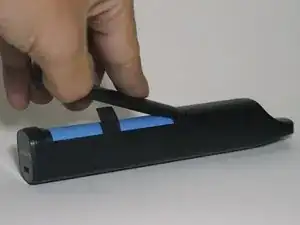

    • Use a spudger to pry off bottom cover

    • This might result in physical damage of the plastic bottom and cover by deforming the material

  4. eTTaMDDUM4wwywdf
    eTTaMDDUM4wwywdf
    WVvlkrGBSUFCXy1b

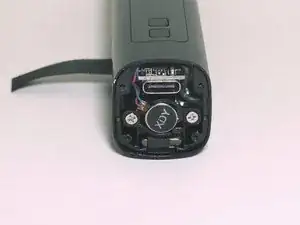

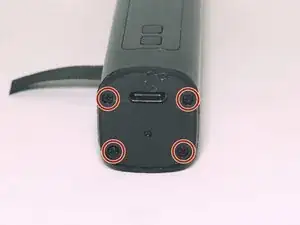

    • Remove four PH000 screws

    • Remove plastic cover

  5. QqbC3qaXA26IVaUO
    QqbC3qaXA26IVaUO
    3t6pA2LaVj5Kho35
    2rDVIJMfCRwn2iKs

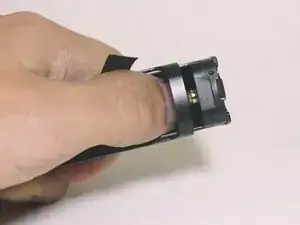

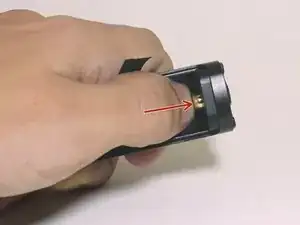

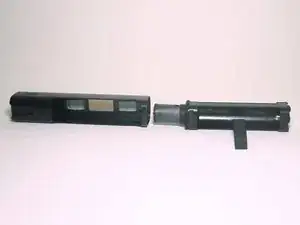

    • Use your thumb to apple pressure in the direction of the arrow

    • The entire assembly should slide out of the metal case

  6. MeLCWDLYmdVmUkZe

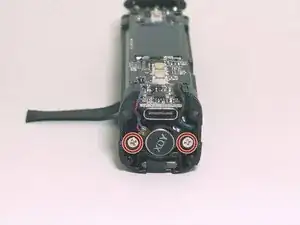

    • Remove both P00 Screws

  7. E6mbBlUFvNoUB1pV
    E6mbBlUFvNoUB1pV
    F2fGqfSQprhwFFE3
    2PRFxeCgtRUIANQW

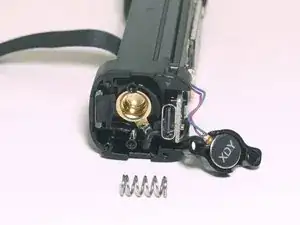

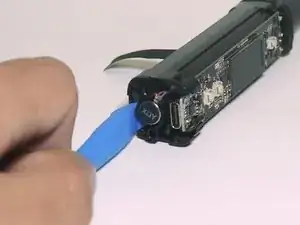

    • Use a spudger to remove the vibration motor and spring

  8. MIpMkDZGN3lJUuOS
    MIpMkDZGN3lJUuOS
    AsRayBIFDXjFlEFC

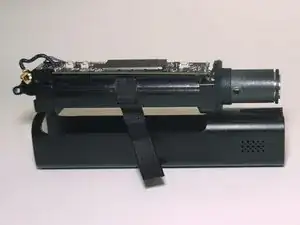

    • Here is an overview of the internal assembly on top of the metal case so you can see the airpath

    • The rubber gasket that can be seen better in step 11 stops air from entering the heating assembly from the motherboard area and only allows it to be drawn in the the side perforations.

    • Air enters though the area within the red square and then goes though the hole within the red circle

  9. LCIhtXyZal2jL2LT
    LCIhtXyZal2jL2LT
    DlNnEXbNt6drO3ET

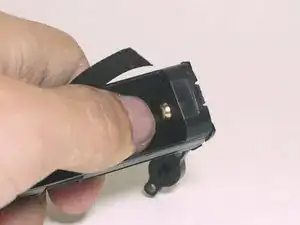

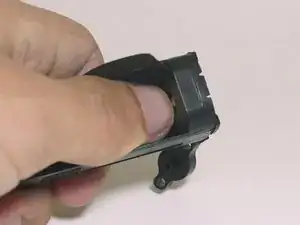

    • Use your thumb to push in the gold contact

  10. emh2bJAkxWHNBQPv
    emh2bJAkxWHNBQPv
    OXALT3leyedS4cpI
    GrPVTgKxnDpsSPs6

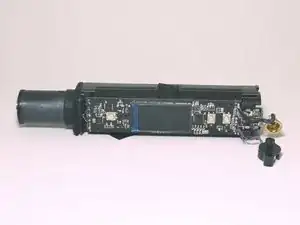

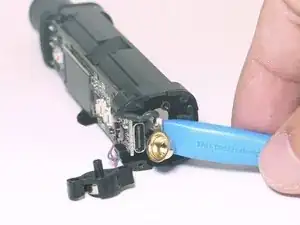

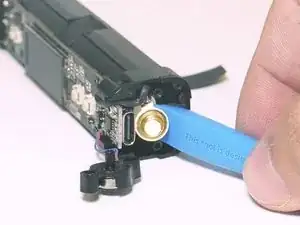

    • Use a spudger to completely remove the gold battery contact from case

  11. uiV2OChEiSnynoV4
    uiV2OChEiSnynoV4
    OpqHIdxAbK5eGV1B

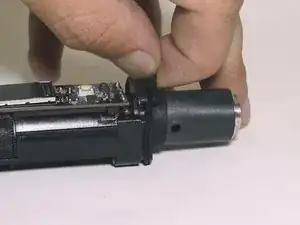

    • Remove rubber gasket, simply slide it down the heater assembly

  12. FcONPFi1MB3ZMwYG
    FcONPFi1MB3ZMwYG
    qFHqkPvrvPIPBTFi

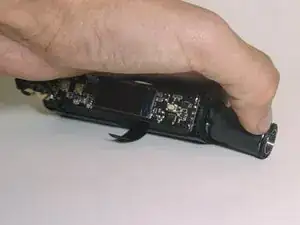

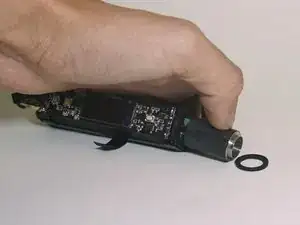

    • Remove rubber o-ring

  13. 3XEHi5hYErfMwkHS

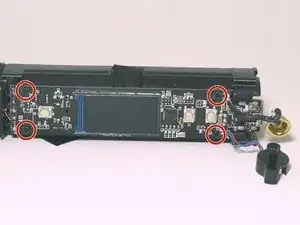

    • Remove four P000 screws

    would it be possible to provide a clearer view of the pcb in higher resolution?

    Luis Moro -

  14. mrZkPNo1ZxakPICV
    mrZkPNo1ZxakPICV
    4HJqG1HbJMj3S2kZ
    A3awal3ZNmyDrUco

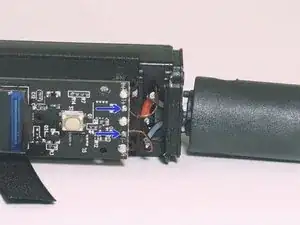

    • Desolder positive battery terminal and both heater wires

    • Desolder both temperature probe wires

  15. mTuRPZ6GXXLhZQrZ
    mTuRPZ6GXXLhZQrZ
    KkmQLmIqCI1QMS4W

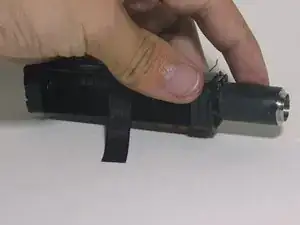

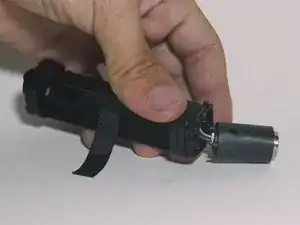

    • Use your fingers to pull off the heater assembly

  16. Fm5omEBkkNnMQKIW
    Fm5omEBkkNnMQKIW
    e45U5mAlMgJQNKeZ
    xQVVSwmWw1GDjycM

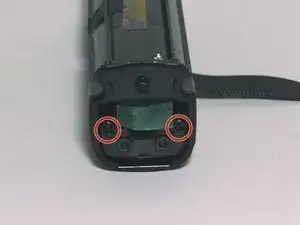

    • Remove both P000 screws

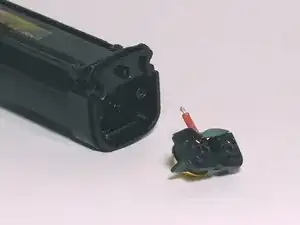

    • Pull out positive battery terminal assembly

  17. FWSmlJVhbS6s4Iq6
    FWSmlJVhbS6s4Iq6
    QHvCNIB2tl6VE4IB
    4vBGuDSuHiViW3Xs

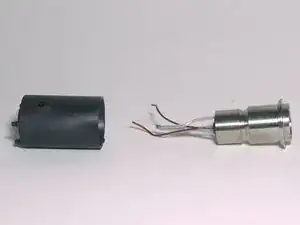

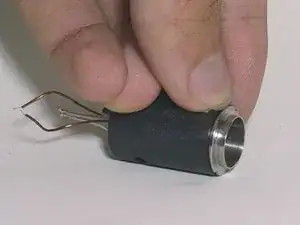

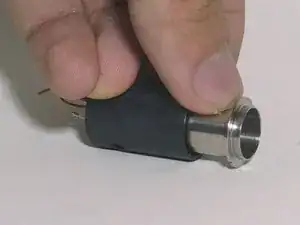

    • Use a nail or spudger to remove the heater core from the outside housing

    • There will be some epoxy on the bottom of the casing that is securing the wires

    • This epoxy needs to be placed before reassembling the device. It stops air from the electronics and motherboard area from entering your mouth.

  18. w4iMkrJXkSfWBYT2
    w4iMkrJXkSfWBYT2
    kJ2jbbAiquTtPWOC

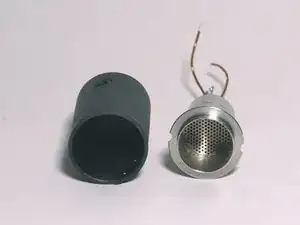

    • Some more photos of the heater assembly

Conclusion

To reassemble your device, follow these instructions in reverse order.
