Introduction

Through normal wear and tear or rough handling, saxophone corks can become damaged, rendering the instrument useless or operating at diminished quality. This guide will replace a Yamaha YAS-23 alto saxophone cork; however, the size for all alto saxophone neck-pieces is standard, so this repair is applicable to all alto saxophone neck-piece cork repairs.

For optimal performance, saxophones require a well fitting cork. Without this, tone quality will be sacrificed, or the saxophone will cease to function.

  1. eTJxKrAk4HxxYPOD
    eTJxKrAk4HxxYPOD
    FyFco3POUNbhdcj5
    • The octave key is silver, while the rest of the neck-piece is gold.

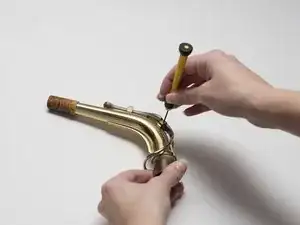

    • Locate the screw on the side of the neck-piece, connecting the octave key to the neck-piece.

    • Use a small, 2.5 mm flat head screwdriver to remove the screw.

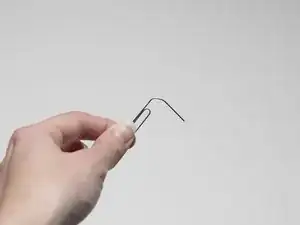

  2. kyMoXbaahMUNdhEr
    kyMoXbaahMUNdhEr

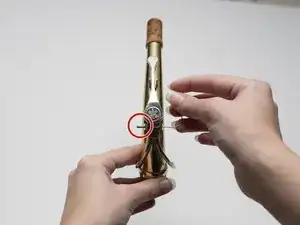

    3qMsABjXx2CtCUJV
    • Open a paperclip.

    • Push the screw out with the end of the paperclip.

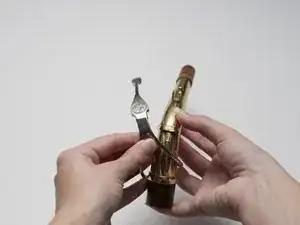

  3. 4ZpQSipQBCKPunXn
    4ZpQSipQBCKPunXn
    QPamrYa2IOhCY6Lr
    hYbZWhaX1hceiWMp

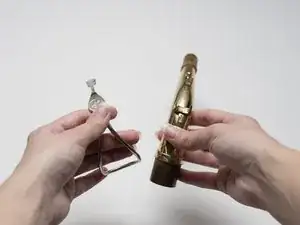

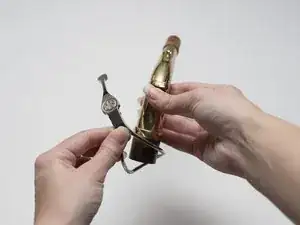

    • Slide the octave key down off the bottom of the neck-piece.

  4. B6AKjJoYHbQxLSET
    B6AKjJoYHbQxLSET
    Zel1DFWGCWysJC6A

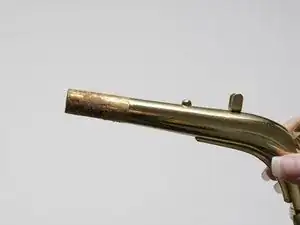

    QG122vxZE3A1l46N

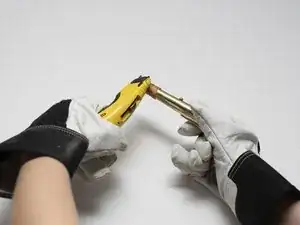

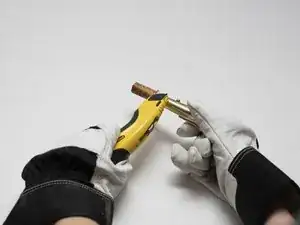

    • Put on leather gloves.

    • Cut away from one's self.

    • Use the utility blade to scrape off the cork.

    • Start at the base of the cork on the neck-piece with the utility blade at a 10 to 20 degree angle.

    • In a controlled motion, drag the utility blade along the neck-piece, removing cork along the way.

    • Repeat until all of the cork is removed.

  5. ypa1NpO5qFHJwxRK
    ypa1NpO5qFHJwxRK
    mNTmoBIB4eYUShpA

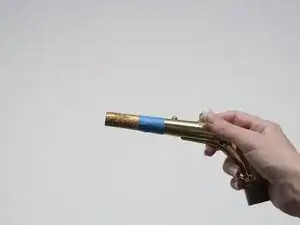

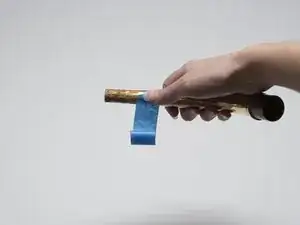

    • Apply masking tape where there is no glue on the neck-piece to prevent damage to the finish.

  6. Nt46OWrGZr6GKK4U
    Nt46OWrGZr6GKK4U
    SK2YS5krSylbLacL

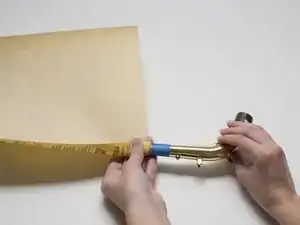

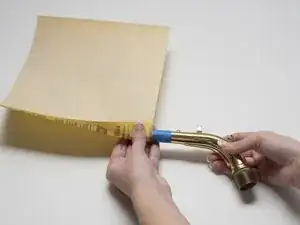

    • Remove glue and resin by rotating the neck-piece against the 220 grit sand paper.

    • Repeat until all glue is gone.

  7. 63C2aXYgks3RELVw
    63C2aXYgks3RELVw
    uymGqvpHnbC5scGb
    2mHgVMO4MgxCY4i5

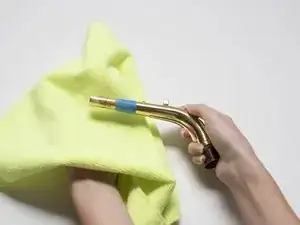

    • New cork may not adhere correctly without completing this step.

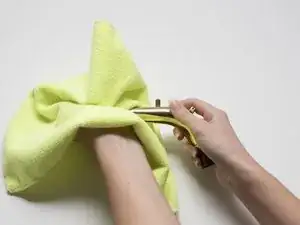

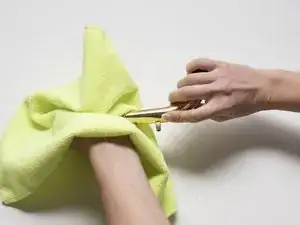

    • With a damp microfiber cleaning cloth, wipe off any dust and glue particles.

  8. tMj5O1rmFCDNsRQi
    tMj5O1rmFCDNsRQi
    WElN6PTVIVKJABks
    SyKg3mAIBA6VjifT

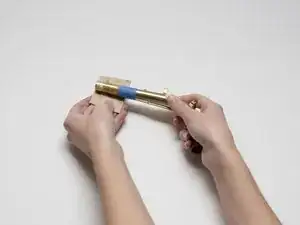

    • Do not remove adhesive covering on the Valentino neck cork.

    • Make sure the shorter base of the Valentino neck cork is flush with entrance.

    • Place the Valentino neck cork flush with the entrance of the neck-piece.

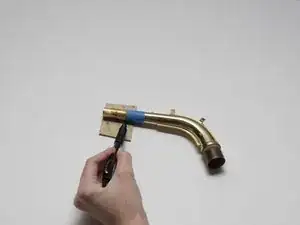

    • Mark a line where the Valentino neck cork meets the masking tape.

    • Cut along the line.

  9. E3qM3t5PwQ61OdXB
    E3qM3t5PwQ61OdXB
    1yHQGTnlYUmrDkYM
    etRrO2rDK6nMrAJ6

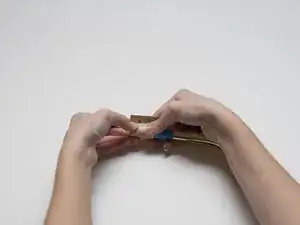

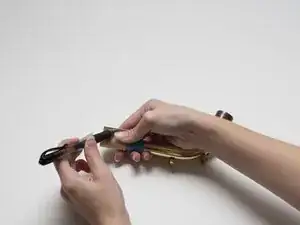

    • Wrap Valentino neck cork around the neck-piece.

    • Make mark where the Valentino neck cork overlaps.

    • Make sure the shorter base of Valentino neck cork is flush with entrance to neck-piece.

    • If Valentino neck cork appears to be too small on one side, rotate 180 degrees.

  10. jOyXIglsHoyJBTOJ

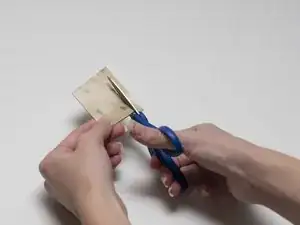

    • Cut the Valentino neck cork along the line made in the previous step.

  11. t6OgcHFMUqvMjFtX
    t6OgcHFMUqvMjFtX
    nmxTvCbtZ1FqtnZJ
    OwitCBjdcFVJDYTR

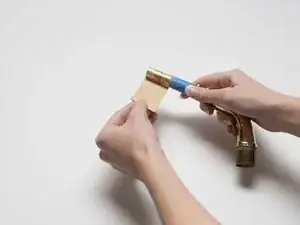

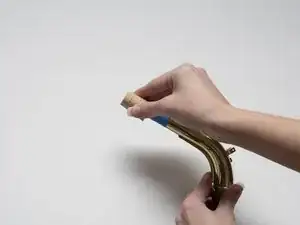

    • Remove the adhesive covering on the back of the Valentino neck cork.

    • Wrap the Valentino neck cork around the top of neck-piece.

    • Place the narrow end of the Valentino neck cork flush with the tip of the neck-piece.

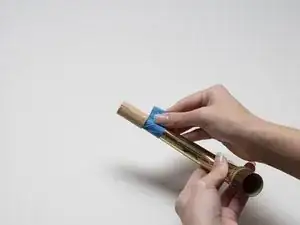

  12. TrFr5TAxwjOpWdND
    • Remove the masking tape.

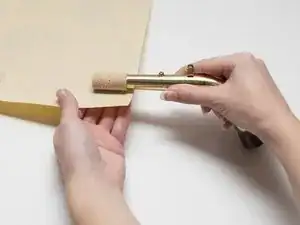

  13. Nx2ii6ZvlKSJMGBG
    Nx2ii6ZvlKSJMGBG

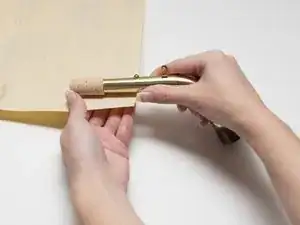

    FeLQai3YNrASZDVj
    • Sand the seam of the Valentino neck cork until it is even with the rest of the Valentino neck cork.

  14. MfaHAKXXFyvpPSTn

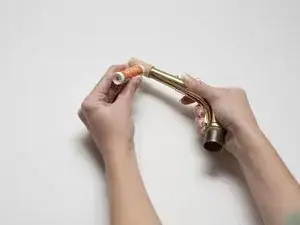

    • Apply a generous amount of cork grease on the whole Valentino neck cork.

  15. s56jmqYBd1DKqagS
    s56jmqYBd1DKqagS
    N2H5pvMCAevqM6mr
    ViIptQCO6ZWEkYEp

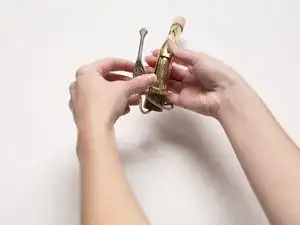

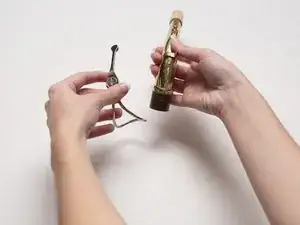

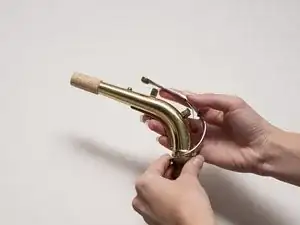

    • Place the octave key on the neck-piece.

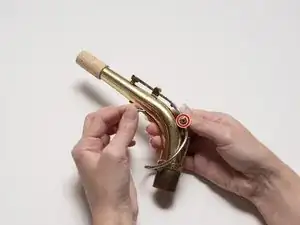

  16. we5mPlKHBbCVDGdO
    we5mPlKHBbCVDGdO
    sNML2VKG1H2KsRLK
    F2AuBGfXLqcnhDwQ

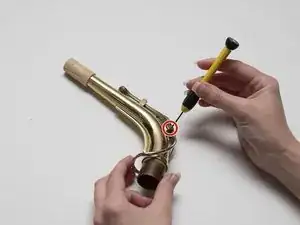

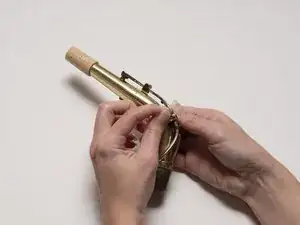

    • Re-insert the screw.

    • Tighten the screw with a small, 2.5 mm flat head screwdriver.

    • The replacement is complete.

    • When applying a mouthpiece to the neck-piece for the first time, it will be difficult and require force. This is normal.
