ZD-N Plus Wireless Controller Rumble Motor Replacement

Written By: Jessica Newhouse
  • Comments: 0
ZD-N Plus Wireless Controller Rumble Motor Replacement

Difficulty

Easy

Steps

6

Time Required

7 - 10 minutes

Introduction

For this guide, you will be taking apart the ZD-N Plus Wireless Controller’s rumble motors and replacing them. Rumble motors cause a vibration that helps the player feel immersed within the game. If there is no vibration, the rumble motors could be disconnected or defective. The cost for new rumble motors could go as low as around $6.00.

  1. PcWemsiVJLRBByES

    • Remove the seven 12mm JIS #00 screws that hold the back panel in place.

  2. PIJjk6I6btCyYbcj
    PIJjk6I6btCyYbcj
    i6sCUV2BYE2sUUYE

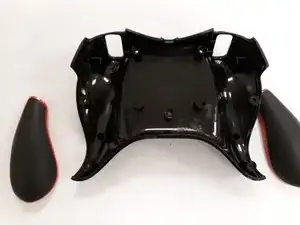

    • Lift up on the back panel of the ZD-N Plus to remove it from the rest of the controller.

  3. aDlpUFMODc2NGDy6

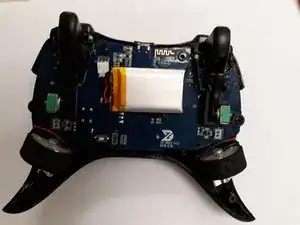

    • Use an opening tool to pry the battery from its original position.

    • The battery is glued on, so this may take some effort.

  4. NlCqEGTjVJJp5BPx
    NlCqEGTjVJJp5BPx
    sIFKKiBveCHMfnZV

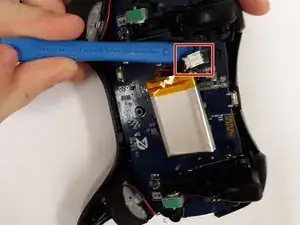

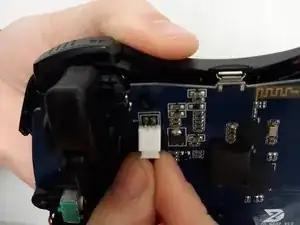

    • Use an opening tool to pry the connector away from the two metallic prongs.

    • The parts are built to stay together, so this may take some effort.

    • Be careful to not warp the prongs in the process.

  5. tPydjZrm5bfx4agP
    tPydjZrm5bfx4agP
    5JJrTAoxUYXQXRib

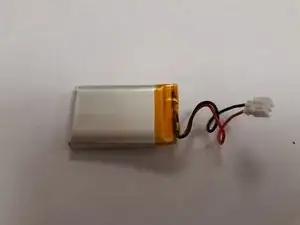

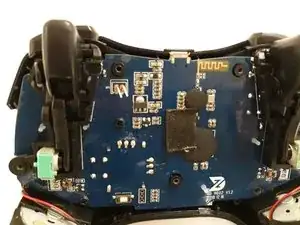

    • Remove the battery from the controller.

  6. nJdXqTMAMASsvwn6
    nJdXqTMAMASsvwn6
    ihPemglJqy2wrYxQ

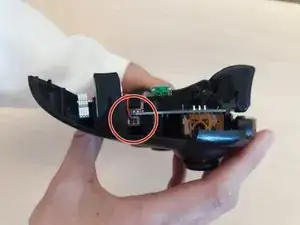

    • Remove the electrical connector attaching each rumble motor to the controller.

    • Lift up on the circular section of the rumble to remove it from the controller.

Conclusion

To reassemble your device, follow these instructions in reverse order.
