ZTE Lever Front Camera Replacement

Written By: Eric Lilling
  • Comments: 0
ZTE Lever Front Camera Replacement

Difficulty

Moderate

Steps

7

Time Required

15 - 20 minutes

Introduction

This guide will demonstrate how to replace the front camera from the mother board of the ZTE Lever phone.

  1. c3JqaLTXpJpmEGhN

    • Remove the SD card and the Sim card from the device.

    • The Sim and SD cards are not shown here as our device did not come with them.

  2. ZUlMEHcKWY1BXqTM
    ZUlMEHcKWY1BXqTM
    Af5ZUELBMBXY2RMu

    • Use an iFixit opening tool to separate the back from the device.

  3. FIR2patmhFWAeDjW
    FIR2patmhFWAeDjW
    lbj3chyP52KxBshT

    • Remove the two 1.6mm Phillips #0 screws from the battery plug cover.

    • Remove the cover.

  4. 4C4IK22ZrvyQbYfv
    4C4IK22ZrvyQbYfv
    LUMR1PyO3JpVkGjb

    • Disconnect the battery cable from the motherboard with a plastic opening tool.

  5. bKBbOqRBaiuVDpfI

    • Use your hands, or a plastic opening tool, to pry the battery from the phone.

  6. KJFw3LTp6IHn2sOD
    KJFw3LTp6IHn2sOD
    sHRSYBSpMBSVEFXN

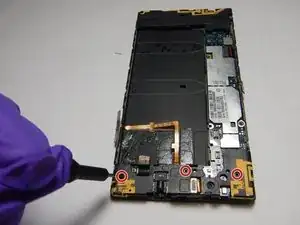

    • Unscrew the three 1.6mm Philllips #0 screws on the plastic cover that are near the top edge of the phone by the camera.

    • Pry off the plastic cover using the iFixit opening tool.

  7. dR2x3NVWGZtB4muv
    dR2x3NVWGZtB4muv
    3mSRxcExTJbERNIb

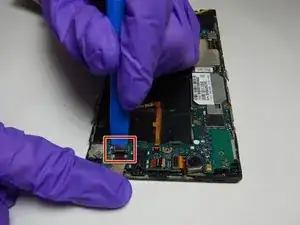

    • Unplug the front-facing camera press fit connector cable using the iFixit opening tool.

    • Remove the camera from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
