Introduction

  1. XiMi1kxhGlkXsYLh
    XiMi1kxhGlkXsYLh
    UJ4CKUT5Zb5f5AWS

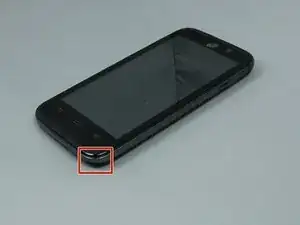

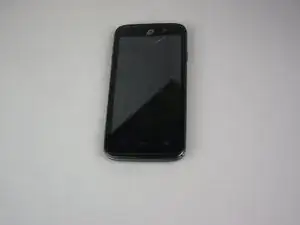

    • Place your phone in the palm of your hand.

    • You will notice the groove and that the back detaches from the phone.

  2. guFTVKqCXrUUB2yt

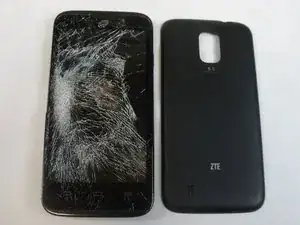

    • Using either your finger or a plastic opening tool, pry the back off to reveal the battery.

  3. B2KvPpXJmv6Lm5Hf
    B2KvPpXJmv6Lm5Hf
    WMmLSw53HNQUbOC6

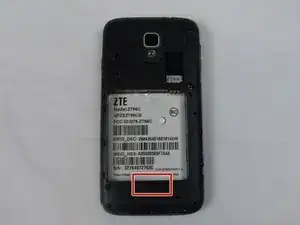

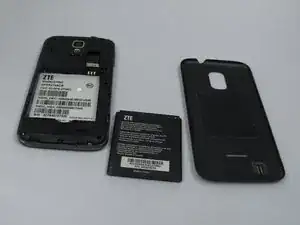

    • Pry the battery out of the groove in the phone with your finger.

  4. k6mrfAgysJBZVJtV

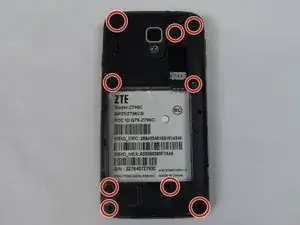

    • Remove the back of the phone by removing the 9 PH000 shown

  5. 1lLfSALaHkLotbB2

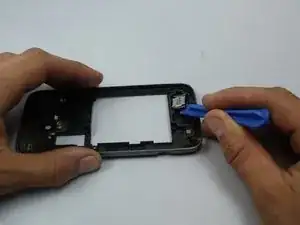

    • Pry the speaker as shown to remove.

Conclusion

To reassemble your device, follow these instructions in reverse order.
