ZTE Prestige 2 Power and Volume Buttons Replacement

Written By: Mackenzie Peterson
  • Comments: 0
ZTE Prestige 2 Power and Volume Buttons Replacement

Difficulty

Moderate

Steps

5

Time Required

15 minutes

Introduction

This guide will help you replace the power and volume buttons in your ZTE Prestige 2. Before you start, check out our troubleshooting page that will help you decipher any basic problems before taking your device apart. Some reasons you may need to conduct this replacement is because the buttons may be loose or broken. Before beginning, make sure to power off your device completely and disconnect from any external power source.

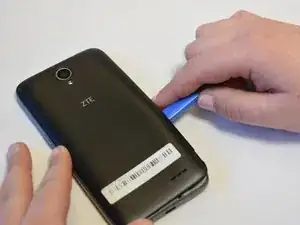

  1. cnHRjTWR3YIYHBgD
    cnHRjTWR3YIYHBgD
    qYTCP153AZXGSQrg
    QNPrhUNJnw5FbcRd

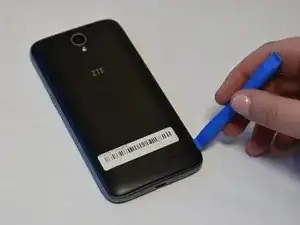

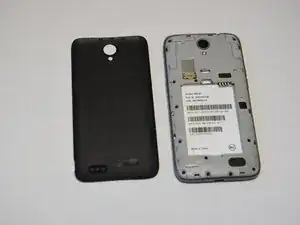

    • Use the iFixit opening tool to open up the device by wedging the tool under the back case and popping it open.

  2. NKffKVmobS1M43tX
    NKffKVmobS1M43tX
    dMUmLB31nIOCJYCh

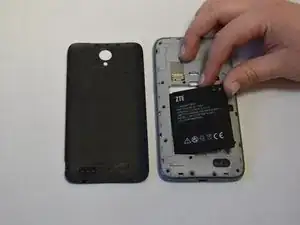

    • Remove the battery.

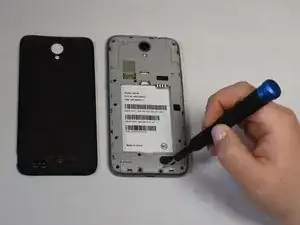

  3. 4boeHyRuRu6sFQeq
    4boeHyRuRu6sFQeq
    BrsAoSGaVXQ4XoOc
    mVRavTXITGbJR242

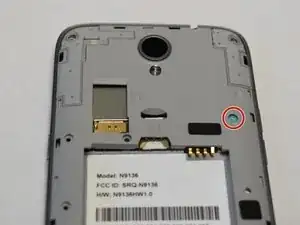

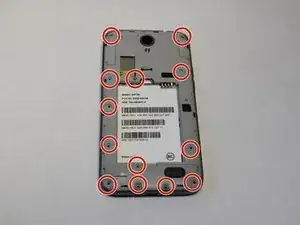

    • Use a Phillips #00 screwdriver to unscrew all 12 of the 3 mm Phillips screws located along the edges of the device’s back panel, as well as the blue 3mm Phillips screw labeled “ZTE” located towards the top right.

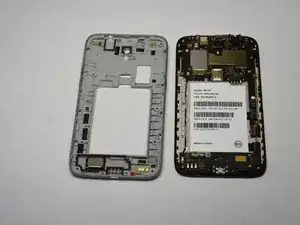

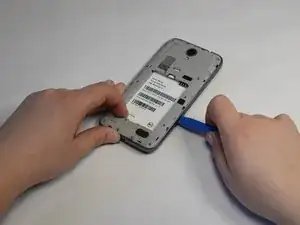

  4. HPJ6klGJMvGIg2PK
    HPJ6klGJMvGIg2PK
    pTYwT1t4yEfeUUIw
    rffVeY3NHoXQWrnR

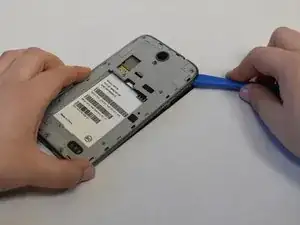

    • Then use the iFixit opening tool and wedge it under the grey back panel and pop it off.

    • There will be a lot of resistance, apply adequate pressure.

  5. Qm1WIxQp3gXkf5Uu
    Qm1WIxQp3gXkf5Uu
    fgtykVslJOqYKYnb

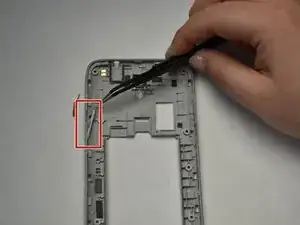

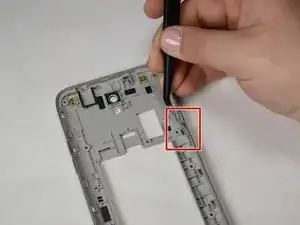

    • Use the curved tweezers to pull upwards and out on the the thin plastic attached on both sides of the power button and volume buttons. This process should allow the buttons to pop right out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
