Introduction

In the event that your ZTE Tempo X is having trouble taking photos, use this guide to replace the front facing camera.

  1. axAZNuRYBuQQacY3
    axAZNuRYBuQQacY3
    kNft1ICjgIa1sLmv
    • Remove back cover using the divot provided.

  2. jZcNoRLLphN3MTe6
    jZcNoRLLphN3MTe6
    5MODTTo4ejEXAdK5
    • Find the divot near the bottom of the battery and remove the battery from the device.

  3. kBcFeFHG2WWAgJxG
    kBcFeFHG2WWAgJxG
    YFSVIajcCrxMDNuB

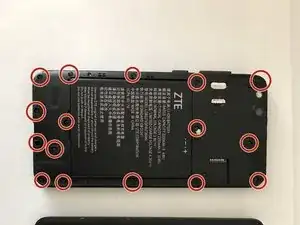

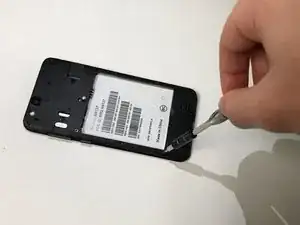

    • Remove the sixteen 3 mm screws on the back cover of the phone using the Phillips #000 screwdriver.

  4. xfvpSasxhDjlDXkQ
    xfvpSasxhDjlDXkQ
    vSKGBfSEWpvBryk4
    siZL23cLOKZMbjgk

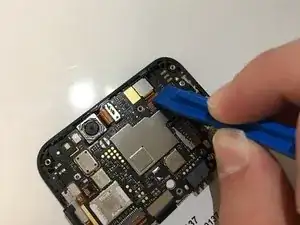

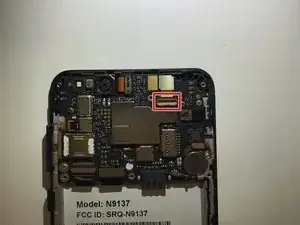

    • Using the spudger, detach the brown flap by flipping it towards you.

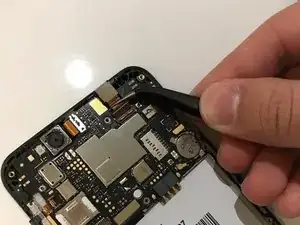

    • With a fine pair of tweezers, pull the front facing camera from the phone.

Conclusion

To reassemble your device, follow these instructions in reverse order.
