ZTE ZFive G LTE Front-Facing Camera Replacement

Written By: Julian Mendoza
  • Comments: 0
ZTE ZFive G LTE Front-Facing Camera Replacement

Difficulty

Moderate

Steps

6

Time Required

15 minutes

Introduction

This guide provides the steps necessary to replace the front-facing camera on the ZTE ZFive G LTE.

  1. iY6ZeWvIJQcDNmSR
    iY6ZeWvIJQcDNmSR
    oVmn4XfduwHGh52I
    YGIIcLjeZFjvVRrK

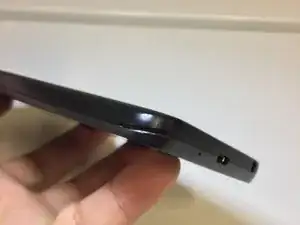

    • Using the opening tool, pry open the rear cover from the crease at the bottom left corner.

  2. UIlr4Nx2GEliuMJA
    UIlr4Nx2GEliuMJA
    NXPtCOZmjaCpDgMv
    v1ATGcR2aOneU1Vh

    • Remove the battery with an opening tool or fingernail.

  3. rYUdrVRZgiZnuDVV

    • Unscrew all 16 screws from the mid-frame J000 screwdriver.

    • Set the screws aside.

  4. WHQJxX2R4OMry6mT
    WHQJxX2R4OMry6mT
    aX6rUZiC5u4fknLw

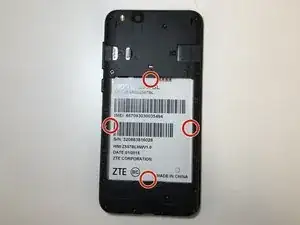

    • Gently pull up the device body from the inside.

    • Make sure to pull on all four sides as shown here.

  5. IFOfNITsOSlVih1A
    IFOfNITsOSlVih1A
    MqSOGTrAqjOfT1w3

    • Once the body is removed, you will see the front facing camera at the top right corner of the device.

    • Using an opening tool, lift up the protective clip on top of the camera's ribbon wire.

  6. nwTckvFtmNZmeelR
    nwTckvFtmNZmeelR
    Dsn2PqmustYXxMCT

    • Using angled tweezers, gently pull the ribbon wire up from the body.

    • With the ribbon wire out, you should be able to remove the camera.

    • If there is adhesive on the camera backing, it may require more force to pull the camera out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
