ZTE ZMAX Z970 Power Button Replacement

Written By: Burak Cengiz
  • Comments: 0
ZTE ZMAX Z970 Power Button Replacement

Difficulty

Moderate

Steps

10

Time Required

1 - 3 minutes

Introduction

This guide will show you how to remove a defective or broken power button on your ZTE ZMAX smart phone.

  1. FSbt1TfFaolKR6Ad
    FSbt1TfFaolKR6Ad
    usmy22kdiHNdodUD

    • Insert a fine point tool into the hole on the top left side of the phone to remove the SIM and SD card trays.

    • Pull out the trays.

  2. xPPhjwURYZoFIjUK
    xPPhjwURYZoFIjUK
    Mv5tSpSbFoXoAPpA

    • Insert a plastic opening tool into the groove between the phone’s back cover and casing.

    • Move the plastic opening tool along the edges of the phone to unclip the two pieces.

  3. 2kNAYSQygEOwSnjQ
    2kNAYSQygEOwSnjQ
    VqCxHQqiGHsGFSxR
    SdRMSfXYbnbDD1QT

    • Remove the ten 1.2mm screws with a Phillips #000 screwdriver.

  4. 1ubDLdGjEoD4vWFN
    1ubDLdGjEoD4vWFN
    JnEFwDTlUwVIJhNx

    • Remove the mid frame with the plastic opening tool.

  5. uh4QNRLZ5uBBflxR
    uh4QNRLZ5uBBflxR
    JnsSMXh5c4Wvgmnb

    • Disconnect the battery from the motherboard.

  6. Hw53OHKKF3xfFLKx
    Hw53OHKKF3xfFLKx
    tBYWqpGv4dTlBeFv

    • Wedge a spudger underneath the battery and gently pry upwards to remove the battery.

    • Once free from the glue, remove from device.

    • The glue holding down the battery is strong so work slow and cautiously to avoid starting a fire.

  7. WbZEfNMHNkHX6V26
    WbZEfNMHNkHX6V26
    IjvvXVOMw5alO6OY
    aZL1TrUK23EieyBI

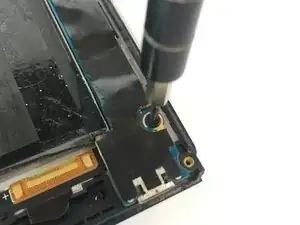

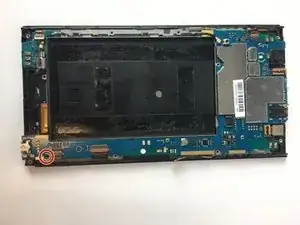

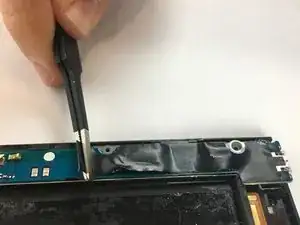

    • Remove the black tape covering the motherboard.

    • Remove the single 1.2mm screw with a Phillips #000 screwdriver.

  8. FZEqWEwVAf62dGlj
    FZEqWEwVAf62dGlj
    ABxPn2gegN6A1xA5
    QidfvWTsihcTaoFj

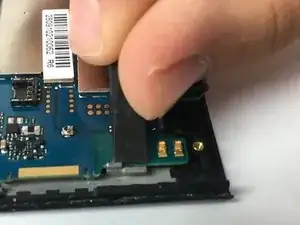

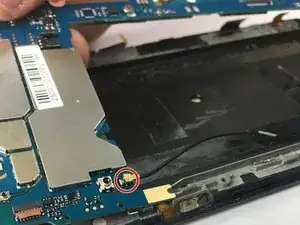

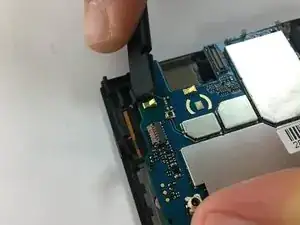

    • Use the flat end of the spudger to release the upper left and right prongs that secure the motherboard.

    • Detach the antenna cable.

  9. 3dOlSVsyiQiJpGti
    3dOlSVsyiQiJpGti
    VD344fr3MRIV3ZsH
    bB2W4TmKYYTnHVKT

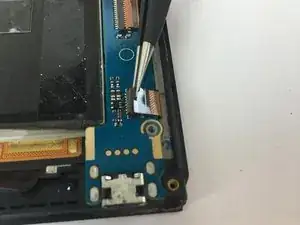

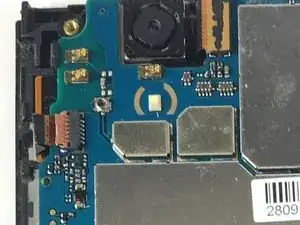

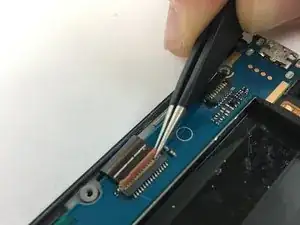

    • Lift up the tan flap on the three ZIF connectors.

    • Pull the ribbon out of the now unlocked ZIF connectors.

  10. OecVItwVw2mS5O3P
    OecVItwVw2mS5O3P
    1YHtIEaBqIJJPRpH

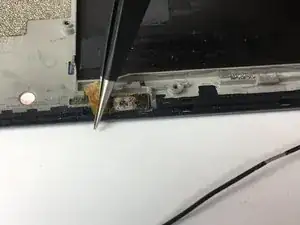

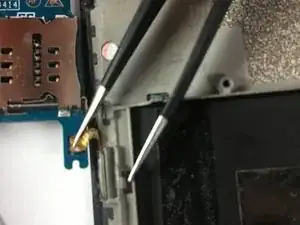

    • Lift the covering panel below the motherboard covering and connecting the power button.

    • Disconnect the circuit tape of the power button and remove the power button.

    • The power button in these photos has been damaged and not soldered to the motherboard.

    • The new power button will have to be desoldered to the mother board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
