Zoomer Jurassic World Indominus Rex Nose Sensors Replacement

Written By: Luke Selby
  • Comments: 0
Zoomer Jurassic World Indominus Rex Nose Sensors Replacement

Difficulty

Moderate

Steps

3

Time Required

30 - 45 minutes

Introduction

Here it is! The mighty Indominus Rex has fallen prey to mechanical failure. Let's get him up and running again.

  1. 1EARJVmNtBboMyGf
    1EARJVmNtBboMyGf
    nVLo4cywhhJpCJDF

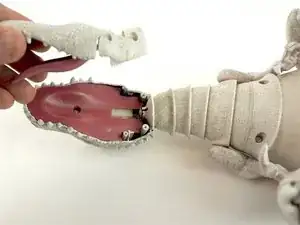

    • Flip the toy over to gain direct access to the first screws you need to remove for the replacement.

    • Remove the two (2) 7.5mm phillips screws using Phillips #1 screwdriver from the bottom of the jaw.

    • Remove the two (2) 7.2mm phillips screws using Phillips #0 screwdriver from the bottom of the jaw.

    • Gently remove the entire bottom jaw piece.

  2. YjPa2oowAZ43NXdl
    YjPa2oowAZ43NXdl
    dHlnJGFTcUCfUAav
    XumxDrU3GxLLDfHp

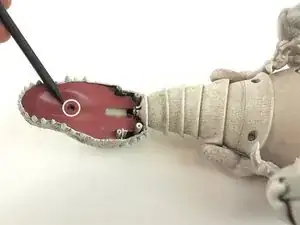

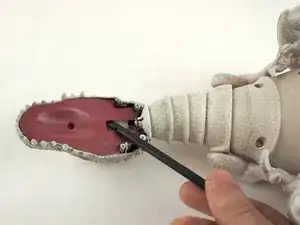

    • Remove the 7.5mm phillips screw using Phillips #1 screwdriver from the middle of the tongue.

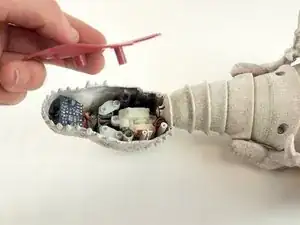

    • Using a spudger, gently pry the tongue out of the mouth.

  3. FtAhRfrpT1AFZJEH
    FtAhRfrpT1AFZJEH
    YUZTMySsq5DYNPeP

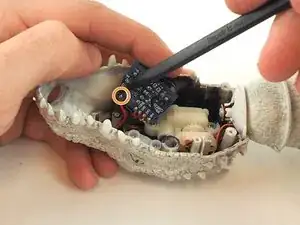

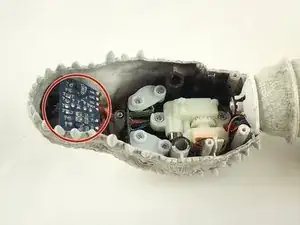

    • Carefully, pull out the circuit board that has the three nose sensors attached.

    • You're almost done! The only thing left to do is to use a soldering iron to remove the six (6) wires connected to the circuit board.

    • Use caution when soldering to avoid being burned.

Conclusion

To reassemble your device, follow these instructions in reverse order.
