Introduction
The iMac uses an incredibly hard to get to power supply. It has 24-Pins. This will require taking the iMac fully apart.
Tools
Parts
-


-

Start by flipping the iMac upside-down. It may help to lay it on a towel, so you don't damage the screen, or scratch the face.

 -

 -


-

Remove this Phillips screw.
 -

Using a flathead screwdriver, work your way around the bottom cover, until it comes off.
 -

Then, lift the bottom cover up and out, and set it aside.

 -

 -


-

Now, remove the DB-15 Video connector from the logic board.
 -

It may be helpful to use a Phillips screwdriver to remove the thumbscrews.

 -

 -


-

Remove the front panel connector. (You may also need to remove an additional screw that connects the front panel connector to the logic board assembly).

 -

 -


-

Now, remove these Phillips screws.
 -

Now, grab the logic board assembly by the piece of plastic, and lift it out.

 -

 -


-

The logic board assembly. This is the heart of the computer, it contains the motherboard, CPU, RAM, V-RAM, PRAM battery, the hard drive, and the optical drive.

 -

 -


-

Removing the front bezel:
 -

There isn't a great position to put the iMac in to remove the front bezel. I recommend flipping it so it it like it would normally be positioned.
 -

Remove these two Phillips screws.
 -

Now, work your way around the bezel with a flathead screwdriver, and then, pivot it up towards the top, and remove it.

 -

 -


-

Removing the translucent plastic:
 -

Removal of the front bezel will reveal two screw covers on the top, pop them off with a Phillips screwdriver.
 -

Now, use a Phillips screwdriver to remove the screws.
 -

You can now remove the plastic.

 -

 -


-

Power Supply:
 -

Removal of the EMI shield will reveal two major circuit boards.
 -

The Display Driver:
 -

The Power Supply:

 -

 -


-

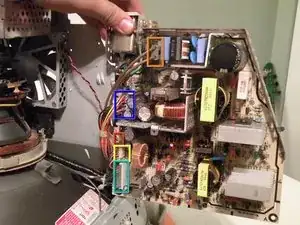

Now, swing the board out, and remove the following connectors:
 -

AC Power
 -

To System Fan
 -

Don't remove this. It comes free with the logic board power.
 -

To Display Driver
 -

The connector that is attatched to the logic board; to remove it, simply thread it through the hole in the metal:
 -

Now, you should be able to remove the power supply.

 -


To reassemble your device, follow these instructions in reverse order.
