Introduction

This guide shows detailed steps on how to replace the battery of the iNet M1001 tablet. This guide is for you if the battery of your iNet M1001 tablet has gone bad and now needs replacement. One should take care not to break open the battery or damage it further when removing it from the device. This guide will show you how to do this in a safe manner.

  1. RHcIK5PpHR13IyD4
    RHcIK5PpHR13IyD4
    Rd5CyCK1a4iOQO56
    • Remove the two 4.1 mm PH1 screws with a Philips screwdriver.

  2. l1iZrcLjr6DogcIM
    l1iZrcLjr6DogcIM
    SuDITJVf4m5Do2aj
    • Press the small suction cup on the back cover, and then pull the small suction cup to remove the back cover.

  3. AnRJCEWXcWeSOHP2
    AnRJCEWXcWeSOHP2
    HY1DT4SFPVnVrDna

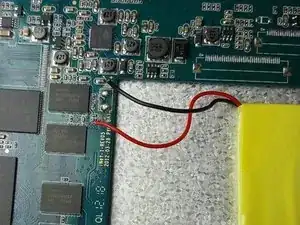

    • Desolder the battery wires with a soldering iron; pull the wires out.

    • Check out this awesome guide for tips on soldering and desoldering.

  4. mRS4GFc3mWPbXbBX
    mRS4GFc3mWPbXbBX
    hwUYZ52WESR2gvLl

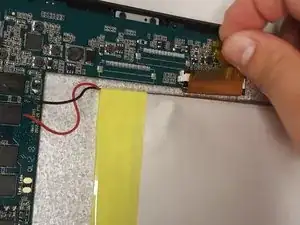

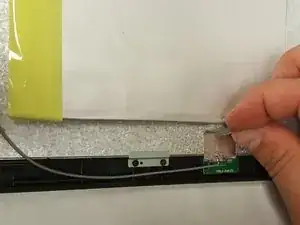

    • Remove the two pieces of tape on the battery.

  5. ey4fxZgBsBaO3Qem

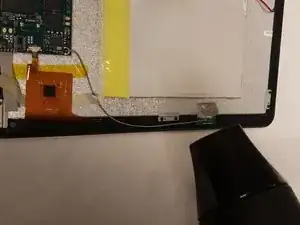

    • Apply heat around the edges of the battery with a hair dryer.

  6. pGDUWRNeHUZ12f6C
    pGDUWRNeHUZ12f6C
    OC1SuUi2STXZnnhw
    3tjRvxnHmS4maH1s

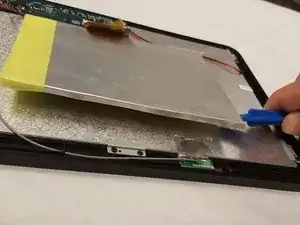

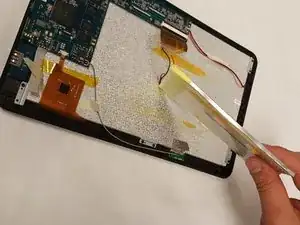

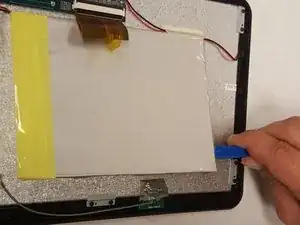

    • Pry off the battery with a plastic opening tool.

Conclusion

To reassemble your device, follow these instructions in reverse order.
