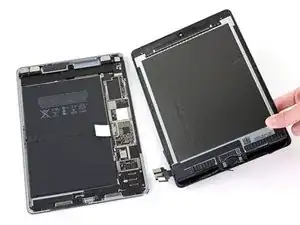

iPad Pro 9.7" Display Assembly Disconnect

Written By: Arthur Shi
  • Comments: 3
iPad Pro 9.7" Display Assembly Disconnect

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

Prerequisite only. This guide shows how to disconnect the iPad Pro's display assembly.

  1. SSnJJGWG4QmSor5T

    • Use a Phillips screwdriver to remove the three 1.3 mm Phillips screws securing the display cable bracket.

    i think we need to talk about the battery situation here. apple change up the style of battery connector on this model as well as some others. if someone can add to this list and add the appropriate photos in the right spot should help someone else. the battery tabs are open towards the battery side and inserting a tool in this area can pry them open further and damage or rip off the tab. some have found that by lifting on either side of the battery tab, they would not even encounter the tabs.

    greg -

  2. 1a4ywPCBXTXe1uPJ
    1a4ywPCBXTXe1uPJ
    NQOaPfW4OXpa5vek

    • Remove the display cable bracket.

    A tab was folded over a connector of some sort on the bottom side. I found it was a better to pull from the top to the bottom to fold the tabs slightly to remove this cover.

    rosecitymech -

    Actually it helps to move the cover slightly towards the bottom of the iPad as that disengages to tabs…

    DeeAnn Hopings -

  3. N3WqLqmlprqjmhha
    N3WqLqmlprqjmhha
    vyNRHkW1HFHRt5rb

    • Use the flat end of the spudger to disconnect the display assembly connector from the motherboard socket.

  4. 6ym1twSljAhoSG46
    6ym1twSljAhoSG46
    FMHLJUerOdlvCIJh

    • Repeat the previous step for the two remaining connectors.

  5. VfYWrFtvNprHjYIC
    VfYWrFtvNprHjYIC
    C5LVpSEBGFwHVbQb
Conclusion

To reassemble your device, follow these instructions in reverse order.
