Introduction
Tools
Parts
-
-
Slide the latch on the right to the unlocked position.
-
Slide the latch on the left to the unlocked position.
-
Remove the battery pack from the slot.
-
-
-
With your #0 Philips screwdriver remove the 2 screws from the bottom panel.
-
Now you can remove the bottom cover.
-
-
-
Lift out the plastic tab (including the rubber part that holds the HDD in its slot).
-

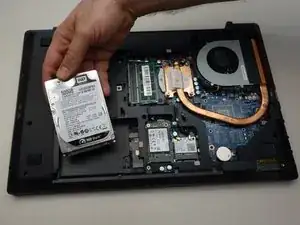

Slide the drive to the left to disengage the connector then lift to remove the HDD from its SATA3 port.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
