why! W670SZQ1 Processor Replacement

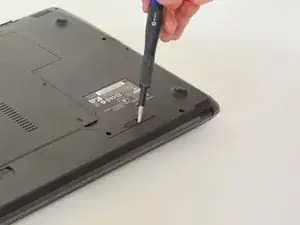

Unlock the lock latch on the left.

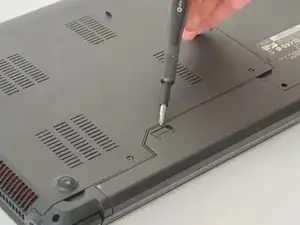

Unlock the lock latch on the right.

Remove the battery while holding the lock latch unlocked.

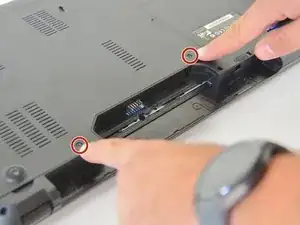

Using the Philips # 0 screwdriver, unscrew the 2 screws from the bottom cover.

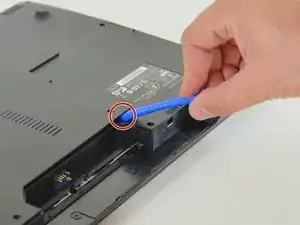

Lift the bottom right cover with the iFixit Opening Tool.

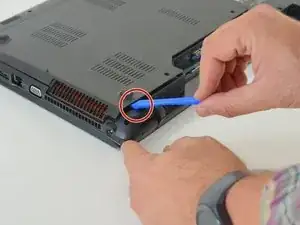

Lift the lower left cover with the iFixit Opening Tool.

Finally clear the bottom cover completely to access the main components.

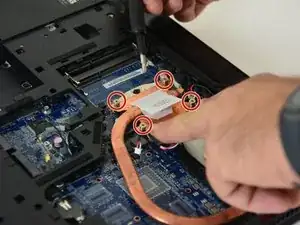

Using the Phillips screwdriver, unscrew the 4 screws holding the processor cooling radiator.

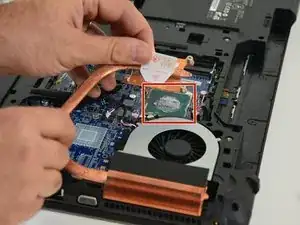

Remove the cooling radiator. Once the radiator removed you can see the processor with its locking latch.

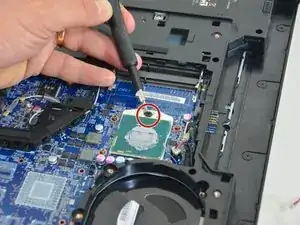

Now unlock the processor with a small screwdriver. Then remove it gently.
