Introduction

The Franklin MWD-460A is an electronic dictionary. It can easily be taken apart with just a few tools.

  1. Hgh21kVPEMLk1MXR
    Hgh21kVPEMLk1MXR
    WA2buoAWNji2MSn4

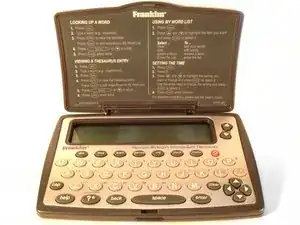

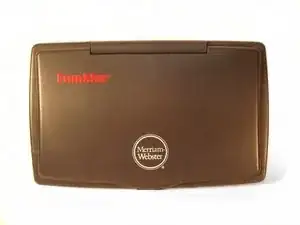

    • Here is the fully assembled Franklin MWD-460A Electronic Dictionary.

  2. bILAPvcRwOxsAPSs
    bILAPvcRwOxsAPSs
    ABXRZIJLFwmIVMn2
    kKESXnH3CNHdsOCP

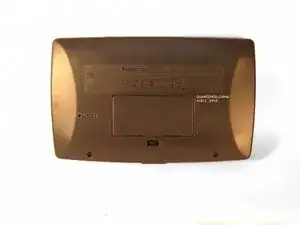

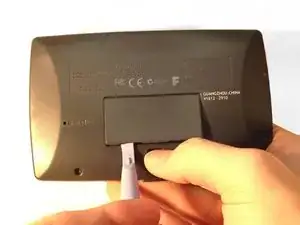

    • On the back of the case, locate the battery compartment, its cover, two grooves, and the tab (which locks the cover in place).

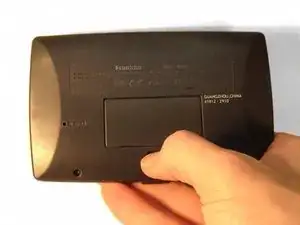

    • Release the cover by pulling down on the tab with a fingernail.

    • While holding the tab down, insert the opening tool into one of the grooves and gently pry the cover off.

  3. 1KqX5CrnmVdgofM1
    1KqX5CrnmVdgofM1
    QbDaIXtKwGjZc2ko
    ZdBJJYPxpfER5xFo

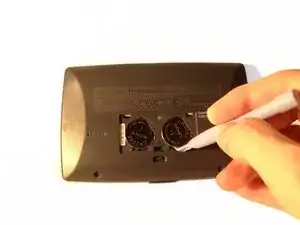

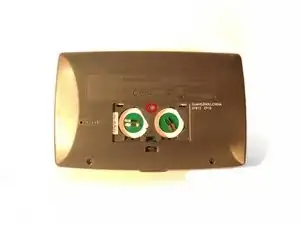

    • Locate the battery grooves.

    • Remove the batteries by inserting the prying tool into the grooves (sliding it underneath the batteries).

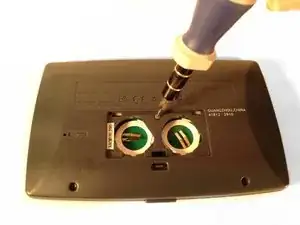

    • Locate the one screw inside the battery compartment, loosen it, and remove it.

  4. jce2d1ZRhFZelnZ5
    jce2d1ZRhFZelnZ5
    5qQUGtdfkCThwMgC
    XM3KiPVVQ4WxMyLN

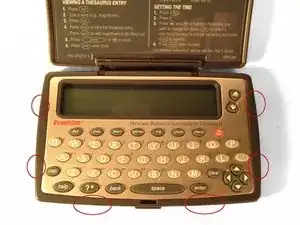

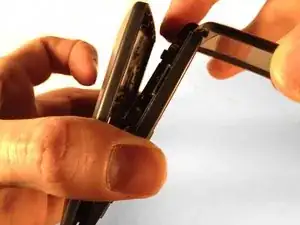

    • Locate the six tabs holding the two panels together along the sides.

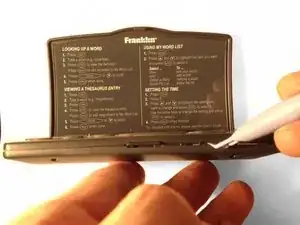

    • Insert the prying tool into each of the six grooves and gently separate each tab from its insert on the other panel.

    • Finally, separate the panels from one another.

  5. 6dgbgtye5DpMtY4L
    6dgbgtye5DpMtY4L
    flFNacU6XKe1TxFQ
    lCvhVwHkoJdbbbfa

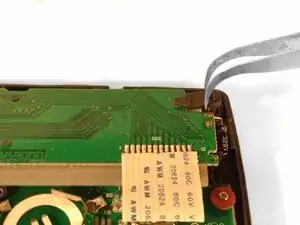

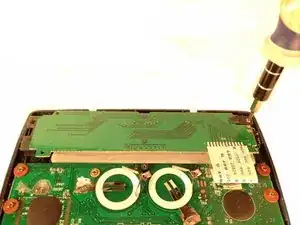

    • Locate the three screws holding the upper circuit board in place.

    • Loosen and remove the three screws.

    • The screw in the top right corner is also holding a tab in place so remember where it goes.

  6. ixllBeqFD66vsW1M

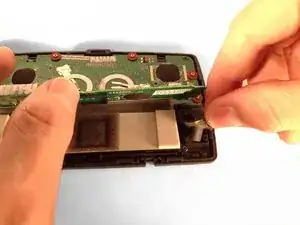

    • Gently lift the upper circuit board to locate the up/down keypad and remove it.

    • Be careful when moving the upper circuit board as it's attached to the LCD screen and the lower circuit board.

  7. XGWFuq1o11hESUo4

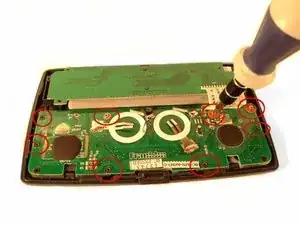

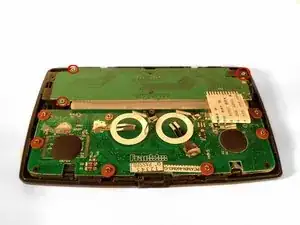

    • Locate the eight screws holding the lower circuit board in place.

    • Gently pull up on the tape to expose the eighth screw.

    • Loosen and remove the eight screws along with their washers.

  8. dLHcvqaDFAyP113x
    dLHcvqaDFAyP113x
    Z2crV1huKBUnTCFM

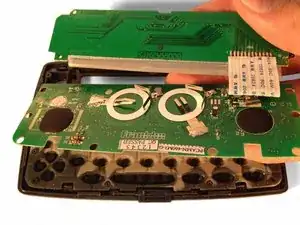

    • Gently lift the two circuit boards (along with the attached LCD screen) away from their case.

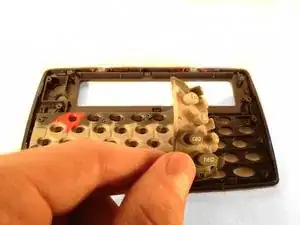

    • Now peel the lower keypad from its case.

  9. AxrdgDZIGSnPiUDf

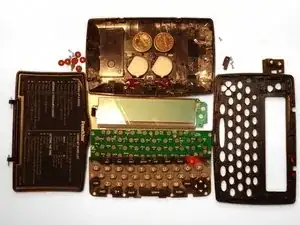

    • Here is a full view of the disassembled Franklin MWD-460A Electronic Dictionary.
