Logitech M205 Teardown

Written By: Sydnee Rodriguez
Published: 02/06/15
  • Comments: 5

Logitech M205 Teardown

Published: 02/06/15

Teardown

Introduction

The Logitech Mouse, model 205, isn't as clear to take apart as later models. But once the steps are known, a teardown for this device is straightforward and requires only common tools. This guide will instruct the reader on how to take apart this particular model.

  1. U2X1MqEtUmBpnIK1
    U2X1MqEtUmBpnIK1
    ITVynNl4JYTHWMgV
    bXAaxtsSvvROhGfa

    • Removing the battery ensures that when you get into the curcuit board of the mouse, you will not be shocked by any energy coming from the batteries.

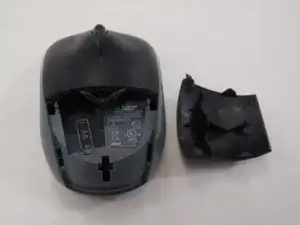

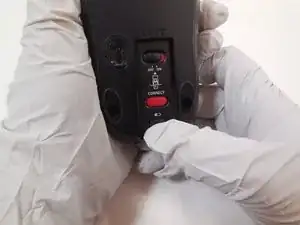

    • To remove the battery, turn the mouse over onto its back and press the square button bellow the battery icon.

    • Pressing this button should release the cover on the top of the mouse, allowing you to remove the battery.

  2. 2N4UBO2XCGsj6Nnq
    2N4UBO2XCGsj6Nnq
    6XSSvC1vWTQpEtGo
    RCB5fLVI5jKosKHj

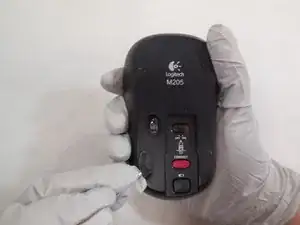

    • Flip the mouse over onto its back.

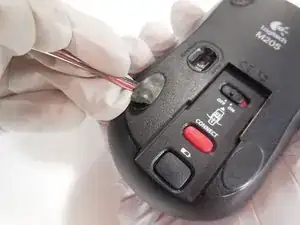

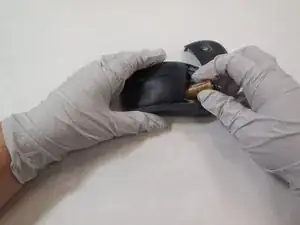

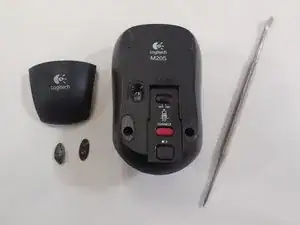

    • Using a metal spudger, scrape off the padding on the bottom two pads as shown.

    • This will reveal a two holes, with a screw in each.

  3. NLbgONjGHUCLSnGt
    NLbgONjGHUCLSnGt
    ppndPtA1QZd5c3LN

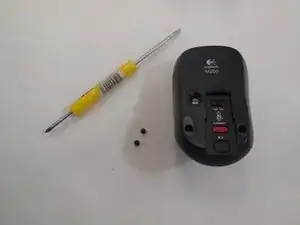

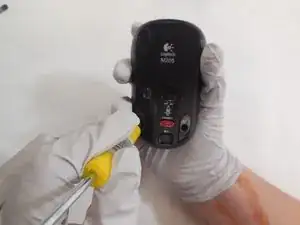

    • Using a phillips head screwdriver (J000 in ifixit toolkit), unscrew the screws holding the base in place.

  4. DDsZVMKjajJIpPoP
    DDsZVMKjajJIpPoP
    nwrBIxDMK3FiyOOZ
    HHgO1MyeRZOFGQvI

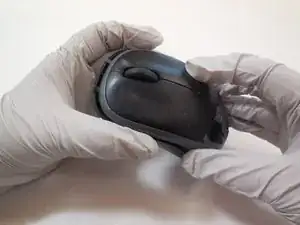

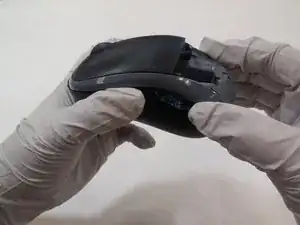

    • Lift up the back side of the mouse, then gently slide the front towards the back.

    • You can only lift a small amount because there are wires connecting the base and top.

    • If you try to lift the front as well, then the plastic will snap. There are tabs holding the top in place, which can only be opened through sliding.

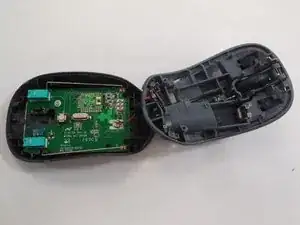

    • After sliding, then the mouse will open as shown.

    • There will still be wires connecting the two pieces.

  5. SReYAEsepNQSo5vv
    SReYAEsepNQSo5vv
    ChXkAYrFRaAyFmxt

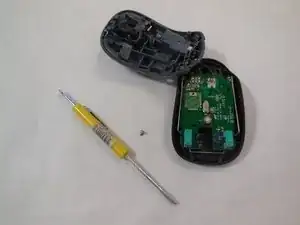

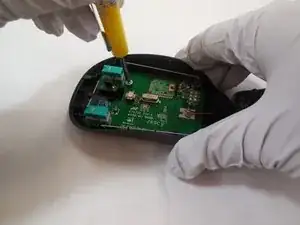

    • Using a phillps head screwdriver (head J000 in the ifixit toolkit), unscrew the circuit board from the mouse frame.

  6. E65PI6B4tRPobu2Y
    E65PI6B4tRPobu2Y
    ksGAUAUK3PogZVAp
    fVCAoAC3WJvtUkVs

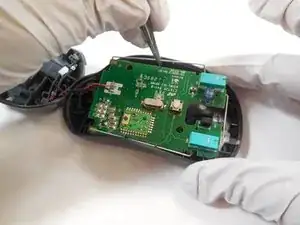

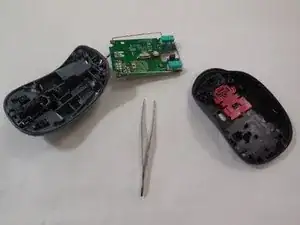

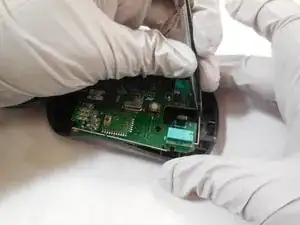

    • Using the tweezers, gently pull the circuit board from the mouse. Hold the circuit board by the metal frame that surrounds it, as shown.
