Introduction
Will show the process of taking apart of computer mouse that uses a ball for the process of tracking motion.
Tools
-


-

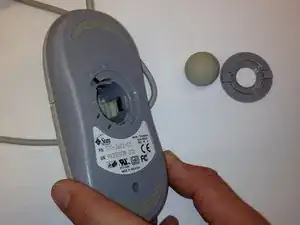

Rotate mouse over and locate Trackball cover
 -

Using index fingers and thumb, rotate counter-clockwise

 -

 -


-

After the Trackball cover has been rotated, pry the lid off using fingernails.
 -

Remove Trackball cover and place to the side.
 -

Angle mouse to eject Trackball from the casing.

 -

 -


-

Using a Phillips head screwdriver, locate screw hole and unscrew the screw inside.
 -

Lift the two cases apart and place screw to the side.

 -

 -


-

Remove the wire from the plastic casing near the top of the mouse.
 -

Lift up to remove the PCB which is attached to the mouse.
 -

Place case to the side.

 -

 -


-

Locate where the wire is connected to the PCB via the white connection.
 -

Pry the connections apart and place the cable to the side.

 -
