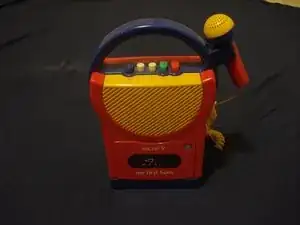

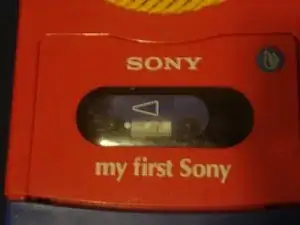

Here we have a 'my first Sony' cassette player with a microphone

It can even take a second microphone, sold seperately of course

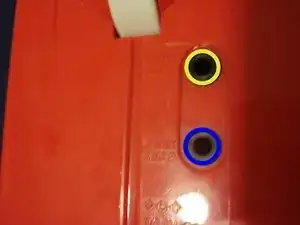

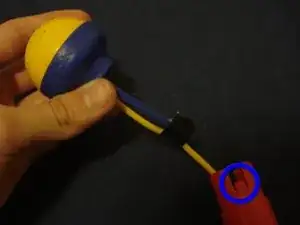

Main microphone plug

Secondary Microphone plug

This model uses four C-cell batteries, these have been in here since I was 10, hmmm... wonder if there's any juice left?

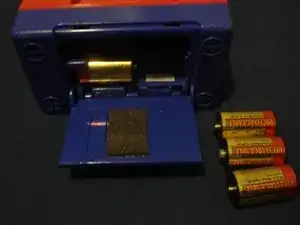

Time to take the batteries out

Push down at one end of each row of batteries towards the spring

With the tension released pull out on the battery until it comes out

Repeat until all four are removed

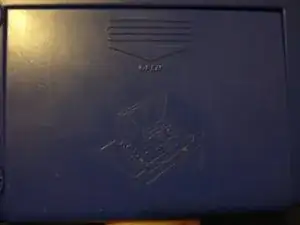

Thumbs up to Sony for providing nice visual instructions for those kiddies

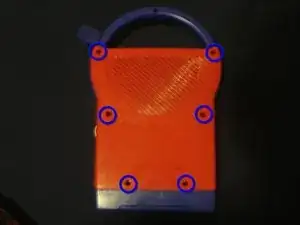

To remove the red back cover you need to remove six screws placed around the border of the cover. Note! The bottom 2 screws are longer than the other 4. These 2 are 35mm long whilst the other 4 are only 30mm long. Don't mix them up !

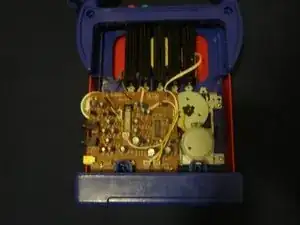

And voilà! Now we have a nice view of all the internal components

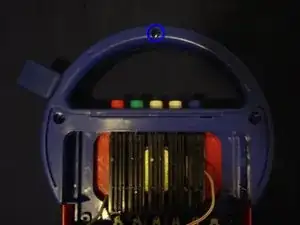

Remove one screw to take off the rear part of the carrying handle

We also gain access to the rubber microphone holder

To remove the speaker first you'll need to get some slack on the wire, do this by pulling it out of a plastic holder thing

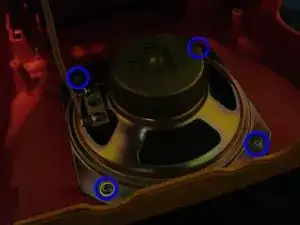

Proceed to to lift up the blue chassis and remove the four screws holding the speaker down

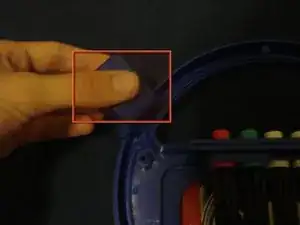

It was a bit of a fight but I was able to pull the blue chassis out of the front piece of the red case

There were no fasteners holding them together

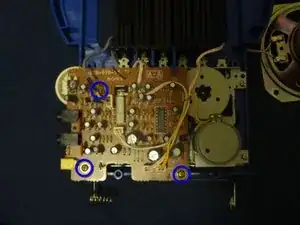

Take out three screws to remove the main circuit board

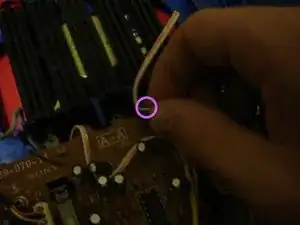

Then unplug four sockets attached to the circuit board

And here we have the only circuit board in this device, don't see any big processors on it, I guess I can't turn it into a super computer :(

After unplugging the circuit board we can completely remove the speaker

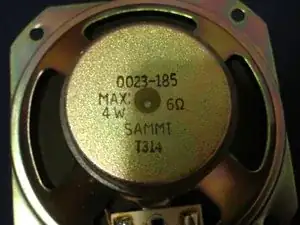

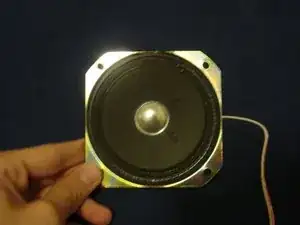

It packs a whopping 3 1/2 inch speaker

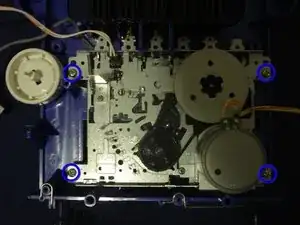

Remove four screws to loosen the tape drive chassis

Then pull up and back to take the chassis out

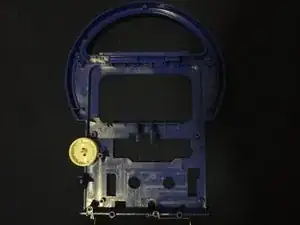

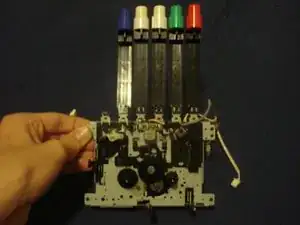

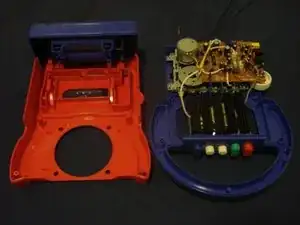

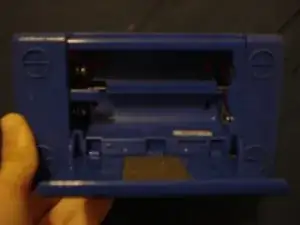

With the tape drive chassis on its own we can look at Sony's weird button system, we also have the blue chassis with no components on it

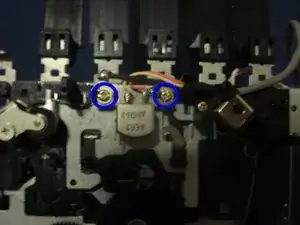

Take out two screws to remove the tape reader/writer

To take the microphone apart just pull very hard on the red handle and it will come out, its held on by two tabs

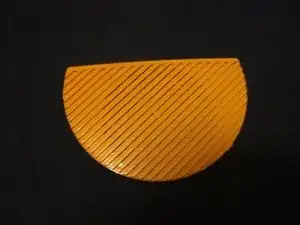

Take off the yellow cover by wedging a flathead screwdriver in the crack and prying it off

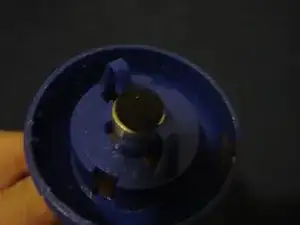

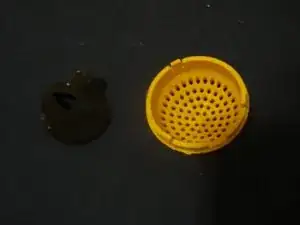

Now we can look at a little microphone, and surprisingly it even has its own windscreen

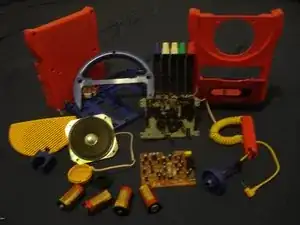

So here we have it all disassembled, and THERE WERE NO 'WARRANTY VOID' STICKERS ANYWHERE!!!
