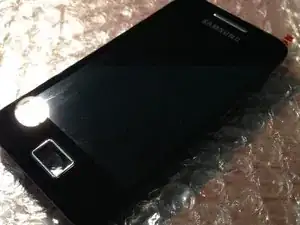

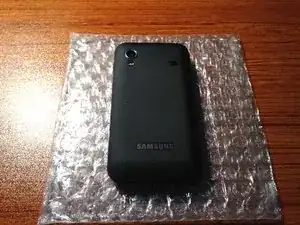

Rotate your Phone.

Remove the plastic battery door.

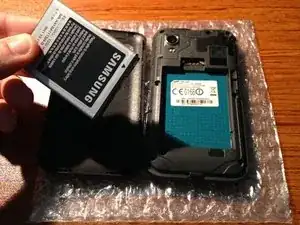

Remove battery.

Unscrew all 7 screws so that the cover can be removed.

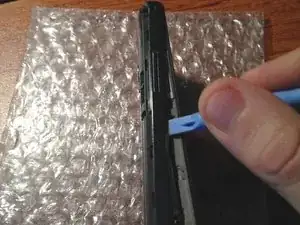

With a plastic tool separate the frame from the aluminum plate. (either from the inside or outside)

Make sure your Micro SD card is removed from the device Micro SD card slot.

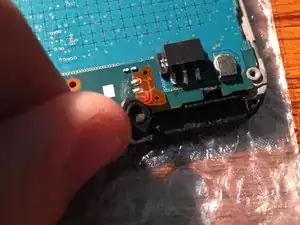

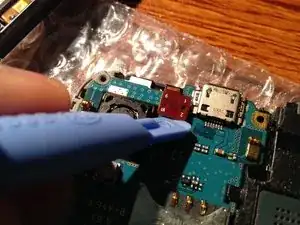

Disconnect the microphone using your fingers, be careful not to do too much pressure.

Disconnect the light sensor and ear piece speaker.To remove this use a plastic tool.

Disconnect the volume rocker, be very careful! They are very thin and glued with double-sided tape. If possible, use isesamo or something really thin!

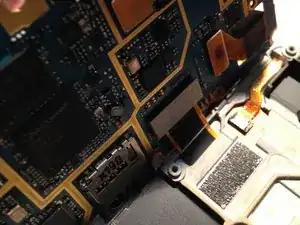

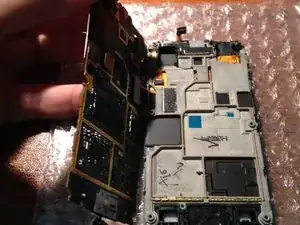

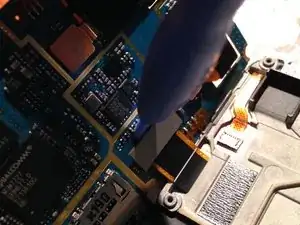

Lift the logic board from the right side, be careful not cause any damage to gently rotate the LCD connector.

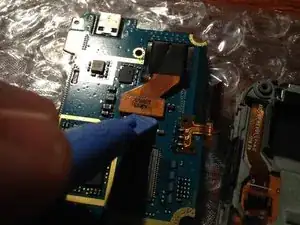

Now with a plastic tool you can disconnect the LCD connector.

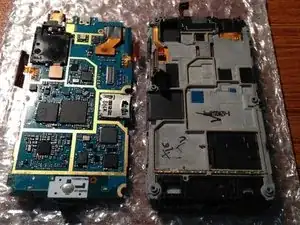

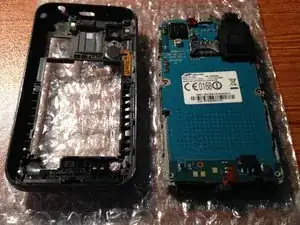

Remove logic board

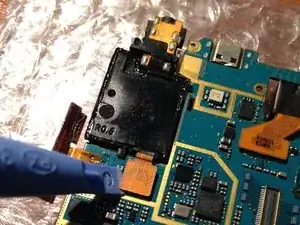

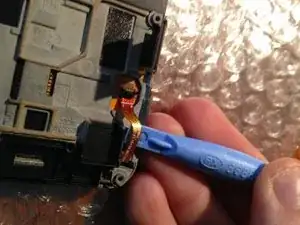

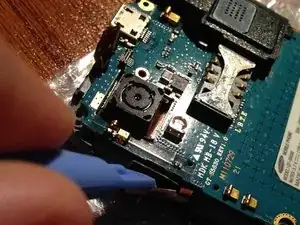

Disconnect speaker and camera with a plastic tool.

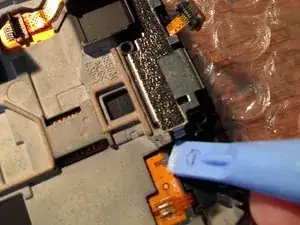

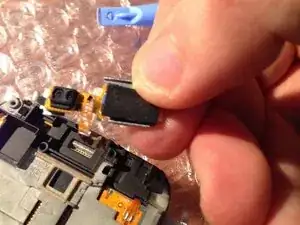

Use a plastic tool or something sharp to lift the aluminum protection that serves to fix earpiece speaker and light sensor and remove it.

After lifting the connector of the touch screen (black tab), lift the cable carefully!

Press the home button to remove it. (This is not fixed,no material).

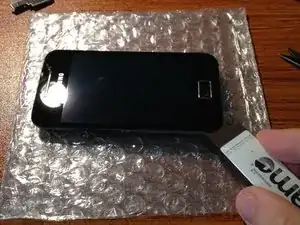

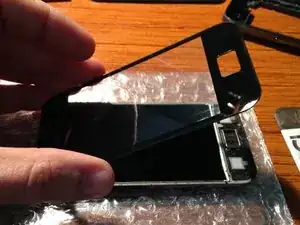

Heat the glass lens with a hot air gun, a tool insert after "isesamo" and slowly raise it.

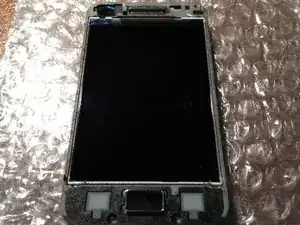

Remove it.

Disassembly is finished! To assemble, follow the guide from the end point to the initial.
