Samsung Galaxy Note5 Teardown

Written By: Sophia

Published: 16/10/15

Comments: 31

Samsung Galaxy Note5 Teardown

Published: 16/10/15

Teardown

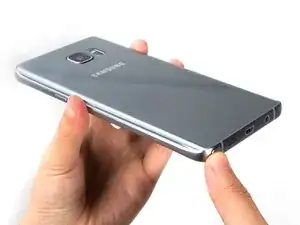

Introduction

Tools

Parts

Samsung Galaxy Note 5 replacement parts

Step 1

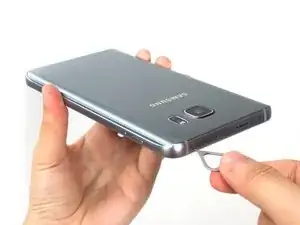

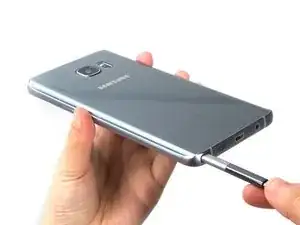

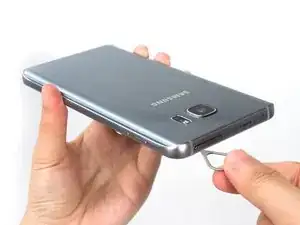

Remove SIM card tray at first. It's Samsung Galaxy Note 5 Duos, so there are two slots.

Step 3

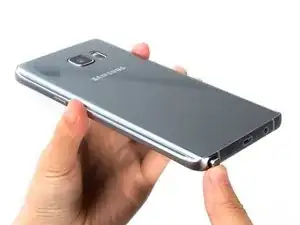

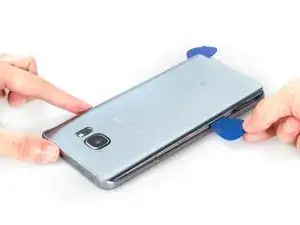

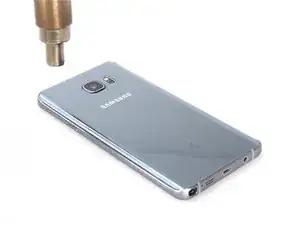

Heat the back cover and cut it sticker underneath. Really strong adhesive. Please be careful with the glass and edged back cover.

Step 4

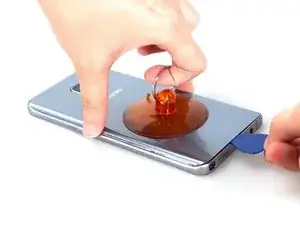

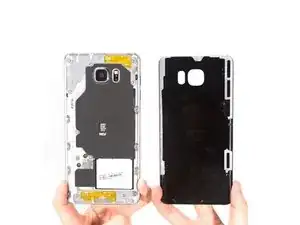

Remove the back cover. And the white strip is adhesive sticker.

Step 5

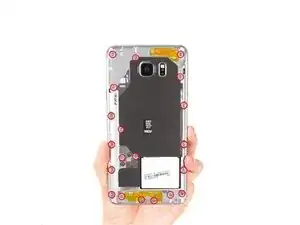

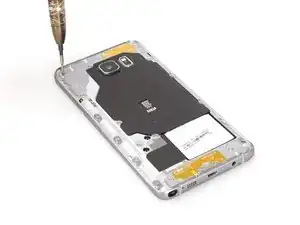

Twist off all 20 screws together.

What is the dimension of the screw?

Dillon Clark Tan - 27/01/20

What are the size of the screws

Rayyaan Shareef - 30/07/20

Step 6

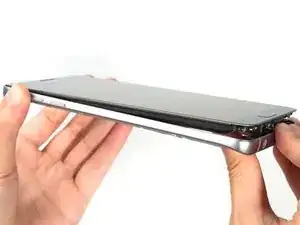

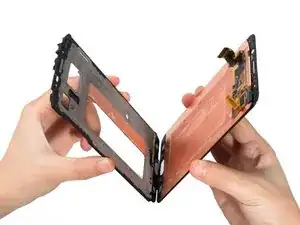

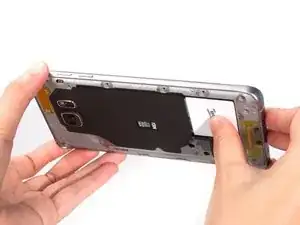

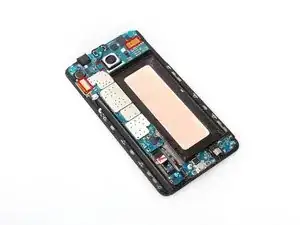

Push the front assembly out from middle housing. There are a little black adhesive sticker on every corners.

Step 7

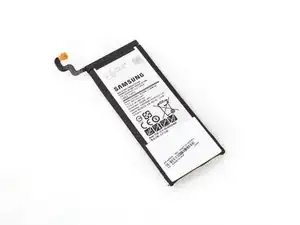

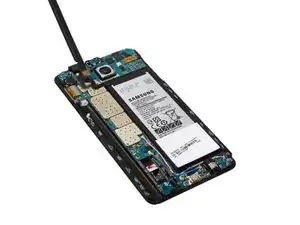

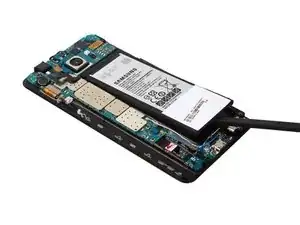

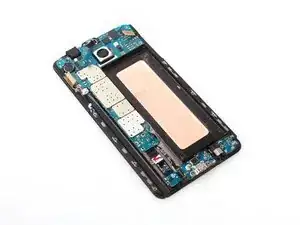

Release battery connector from motherboard and pry the battery up. Yes, there is also some adhesive underneath.

Step 8

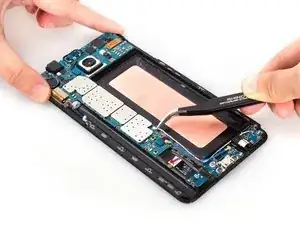

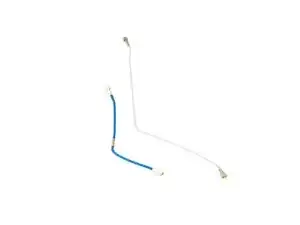

Remove two pieces of signal flex cables. And different versions Samsung Galaxy Note 5 may have only one piece signal cable.

Step 9

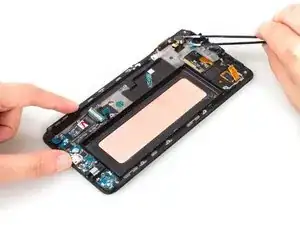

Release LCD connector, digitizer connector, earpiece assembly connector, home button connector on the motherboard.

Step 10

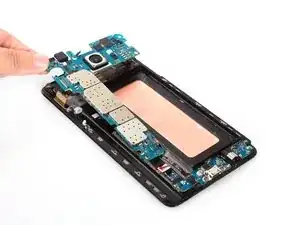

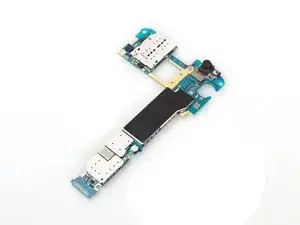

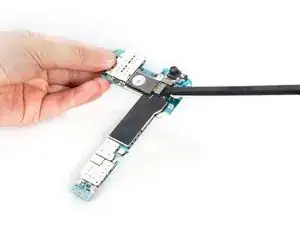

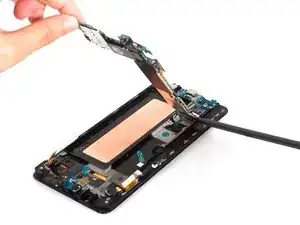

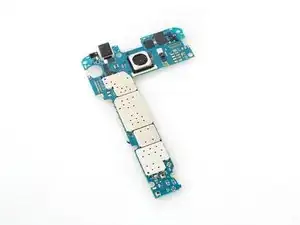

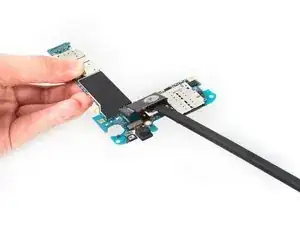

Release USB board connector on the back and remove the whole motherboard.

Step 11

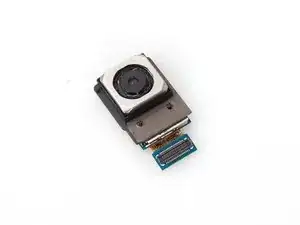

Remove the rear camera. There is a black plastic bracket around camera. So we have to remove them together. And there is a little adhesive underlying.

Step 12

Remove front camera and noise-canceling mic.

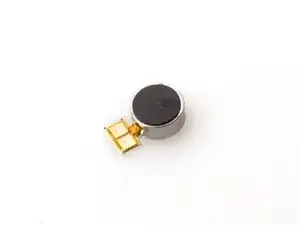

Step 15

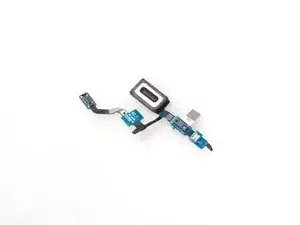

That's Samsung Galaxy Note 5 earpiece assembly. It's integrated by speaker and sensors.

Step 16

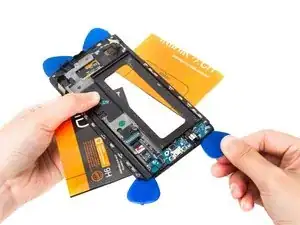

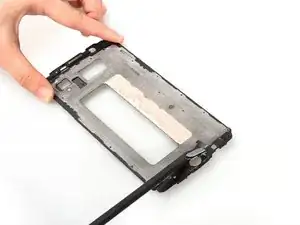

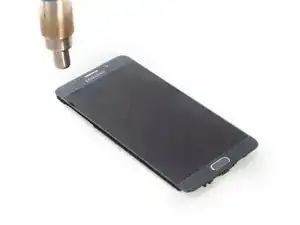

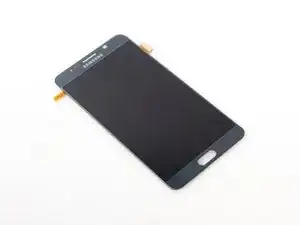

Now try to separate LCD screen from frame. The difficulty and risk to remove screen alone are getting nearly 5 stars (5 scores all together)respectively. The screen is weak and the adhesive are strong as well too much.

Step 17

Since Samsung applied the design that the USB board come with soft keys together, DIY replace USB board and LCD screen alone become much more difficult.
Be careful with the soft sensor keys on the bottom especially the flex.
In fact, the replacement of Samsung Galaxy Note 5 LCD screen, USB board or home button nearly the same with that teardown.

Step 18

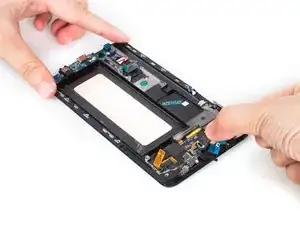

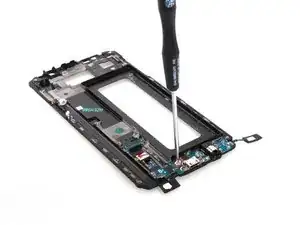

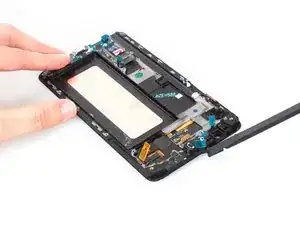

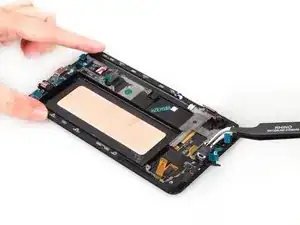

Loosen two soft sensor keys from frame carefully. And remove the last securing screw on USB board.

Step 19

Remove the USB board finally.

Is the mic attached to charging dock flex cable?

Derek F - 22/12/17

Is the mic attached the charging dock flex cable?

Derek F - 22/12/17

Step 20

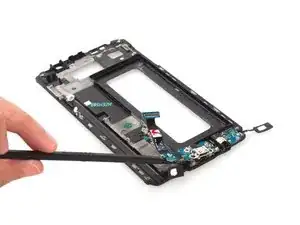

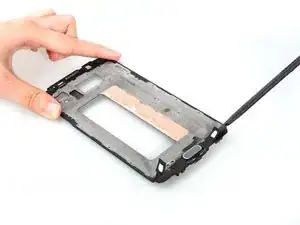

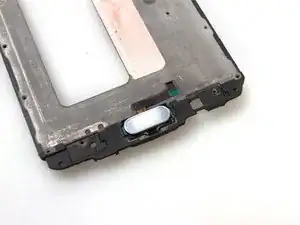

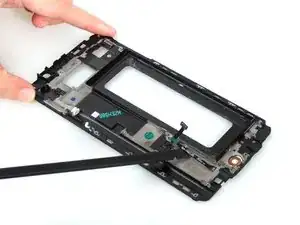

Could you see the mark on the right of the home button? Push the button as its direction and can loosen it from securing slot easily. And then cut the adhesive sticker under the flex.

Step 21

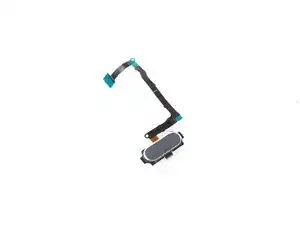

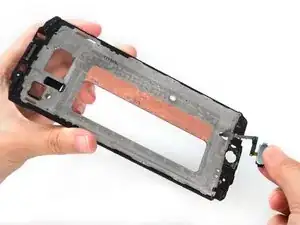

Remove home button flex. Though it's a small component, it's really complicated and difficult to replace, even at the risk to break the screen.

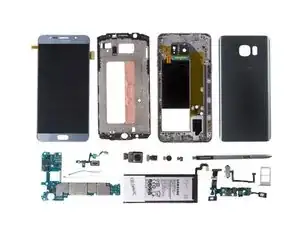

Step 22

Done.
