Introduction
A brief look at the internals of the Toshiba/Dynabook Satellite Pro R50-EC.
This model is similar to the other R50 models (I have also repaired R50-B laptops), and parts such as the keyboard, individual keys, and ribbon cables are cross-compatible.
This teardown may, therefore, also help with a similar model.
-
-

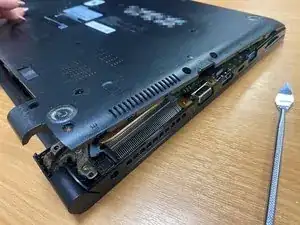

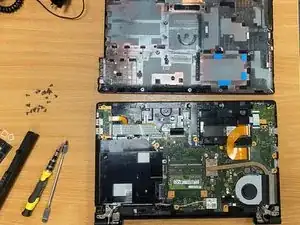

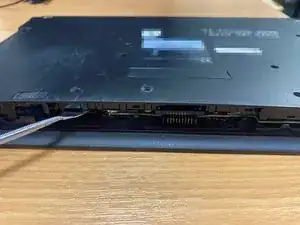

Once the screws are removed, using a flat tool, prise open the bottom of the case from the sides, following around the edges of the laptop until the bottom pulls off entirely.
-
-
-

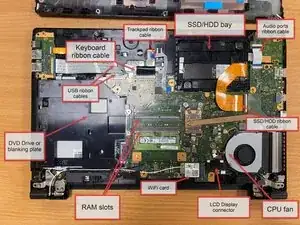

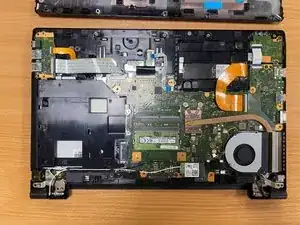

Accessible replaceable parts include:
-
DVD Drive
-
Memory
-
LCD screen
-
SSD
-
WiFi Network card
-
CPU Fan
-
Keyboard
-
