Introduction

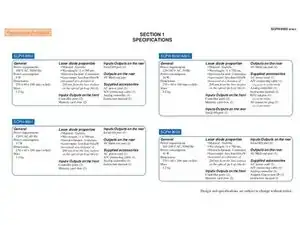

I have a PlayStation 1, and i have decided to make a new teardown of it.
I'm spanish, so my english is a bit poor, and sorry for the mistakes made in this teardown.

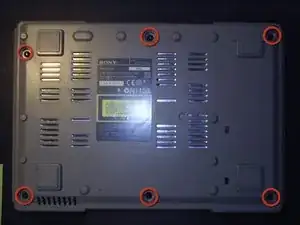

Without further delay, we start.
-
-
Disconnect both CD-ROM connectors.
-

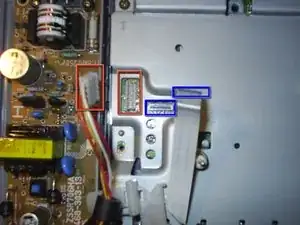

CD connector one and the socket it connects to.
-

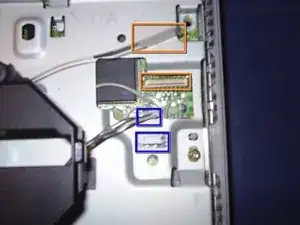

CD connector two and the socket it connects to.
-
Note: part number DEVICE OPTICAL KSM-440AEM
-
-
-

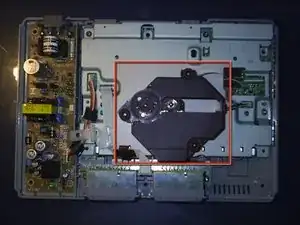

Remove the CD-ROM reader. You should be able to pull it out gently, although you may have to wiggle it around a bit to loosen the rubber holders.
-
-
-
Detach both cables. They go to the power supply and to the memory cards and controller connectors.
-
-
-

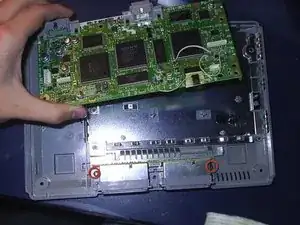

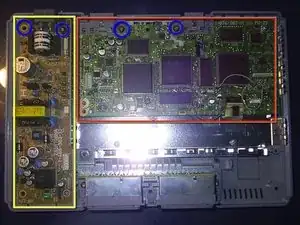

Now you have the motherboard!
-

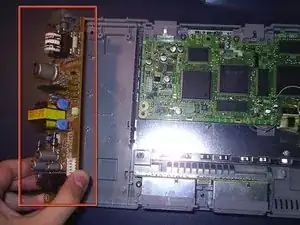

And the power supply.
-

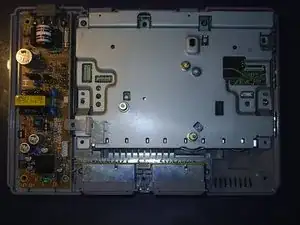

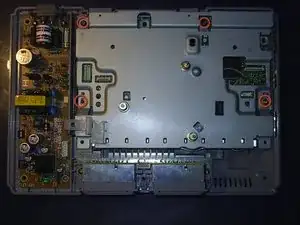

Remove the four screws from the motherboard and the power supply.
-
-
-
Remove the motherboard, and both of the screws from the memory card/ controller connection mechanism.
-
-
-

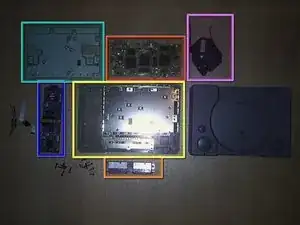

Now, you have all your PlayStation 1 parts!
-
Main Board
-
Lower Casing
-
EMI Shield
-
Power Supply
-
Disk Reader
-
Memory Card/ Controller Mechanism
-
