Introduction

A teardown of the Ti-84 Plus CSE calculator

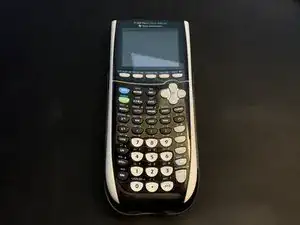

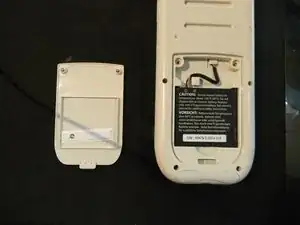

  1. loOFW2tbBjGYRpxC
    loOFW2tbBjGYRpxC
    l3P5rqorCdwhOe2R
    DHUVOltrkgl6dadG

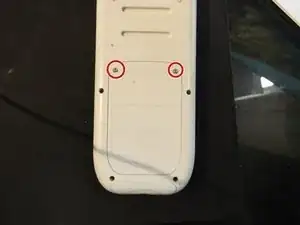

    • Wisdom

  2. 2ZWEDWHrFSWFgMFJ
    2ZWEDWHrFSWFgMFJ
    xLLxijOqnpf2gUQW

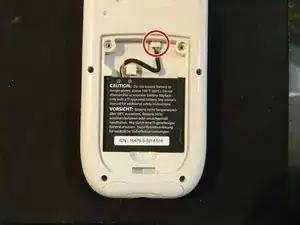

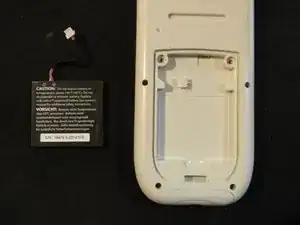

    • Unplug the battery.

    • Be careful not to fray cable while unplugging.

  3. bIuWFYMR5QOGCSpH
    bIuWFYMR5QOGCSpH
    aTyBw5OgCUCUGSZH
    1Pqy2WWmdQunXcBP

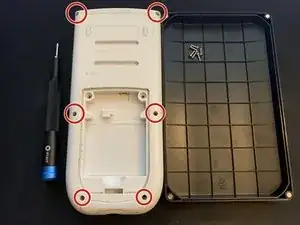

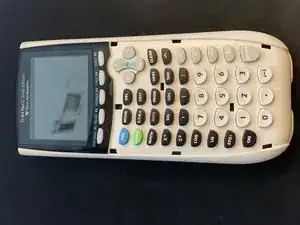

    • Remove the back cover by removing the 6 Pentalobe screws (P6)

    • The front cover can be taken off by prying it off from the front of the device

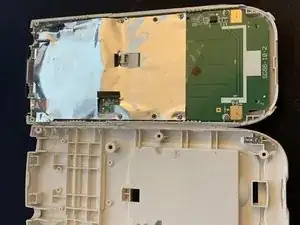

    • Then pry off the back cover it can be a little challenging but take your time

  4. IwSUMHhLbbwS1O2t
    IwSUMHhLbbwS1O2t
    YxWNektSX4QeLK22
    yvQACYiOaCipBLjr

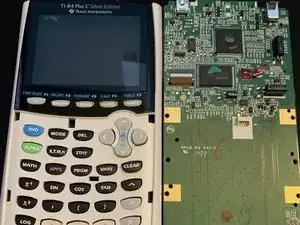

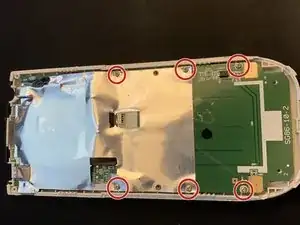

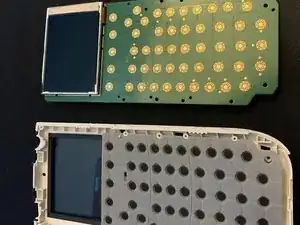

    • Remove the 6 Philips screws holding the mother board and if you want remove the foil just to see the full board itself

    • To change out the buttons take out the grey rubber sheet that separates them from the board (be careful with the buttons as they will fall out)
