Waka Waka Power Plus Teardown

Written By: Harm
Published: 25/03/15
  • Comments: 1

Waka Waka Power Plus Teardown

Published: 25/03/15

Teardown

Introduction

This teardown guided is meant to explain how to take the Waka Waka apart without damaging the components.

  1. ZwLd1WbQcaSHoxLJ
    ZwLd1WbQcaSHoxLJ
    vTNNBO2VHUDWjxLs
    YDpJOTGTWBwHwNIq

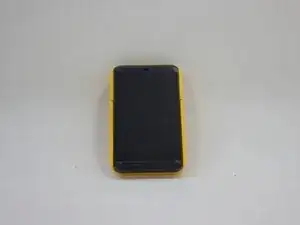

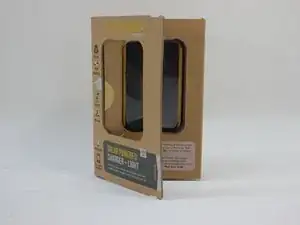

    • It's not just a box, it's also a use guide.

  2. Ff1uO4mhVRgdNgSK
    Ff1uO4mhVRgdNgSK
    aYqueFQWRNuOdklW
    4YYivFCNEVEVZ5Bl

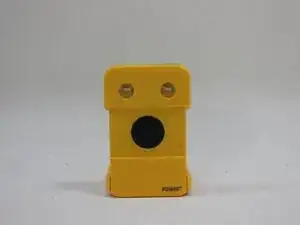

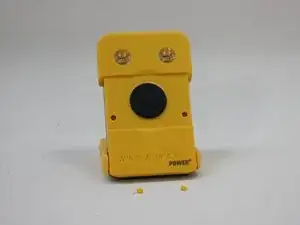

    • The Phillips screws are hidden underneath silicone covers.

  3. M4ZfAUwZwGtJByxW
    M4ZfAUwZwGtJByxW
    VrPLravFXxEtXEBh

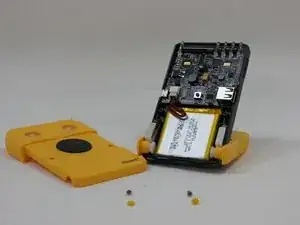

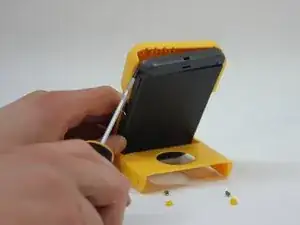

    • The cover is a pain to get open. The amount of force needed is quite high.

    • The hinges are spring loaded. They tend to fly away when tension is relieved.

  4. 2nxfKZfVfLV1YWu1
    2nxfKZfVfLV1YWu1
    KDsHABXhNjq3iMLZ

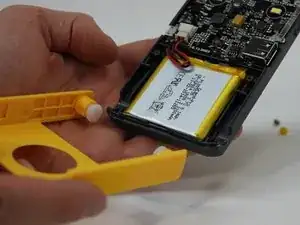

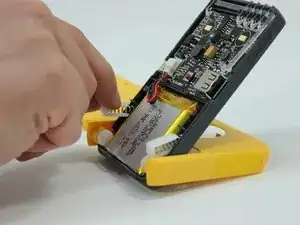

    • As said in the previous step, the springs tend to fly away!

  5. LiZmLJYOPTiWYrTs

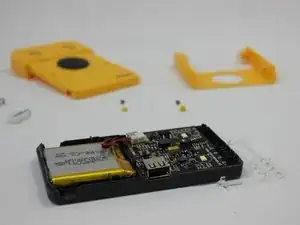

    • This can simply be pulled out once the covers are removed.

  6. hD5xMT2CWY4SMIvp
    hD5xMT2CWY4SMIvp
    2qIuH1GkQAjZSFm3
    GaIKfgfhTNqtgIdS

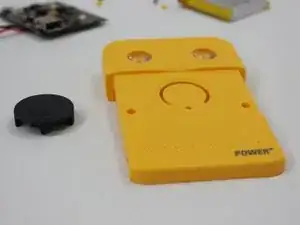

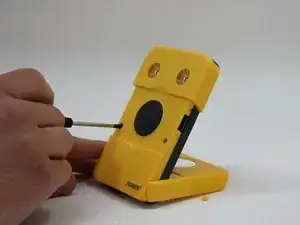

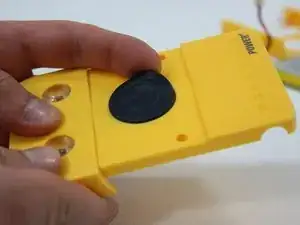

    • A screwdriver may not be the ideal tool for this job, a less sharp object might be better to avoid damage to the silicone.

  7. FRTXULwvjZYGKK3Y

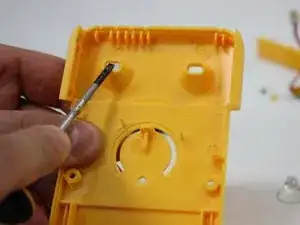

    • Use the flat side of the screwdriver to avoid damage to the lens.

  8. OMsDs1CVW41qYCZ6
    OMsDs1CVW41qYCZ6
    xeaTOexqH1anFeyE

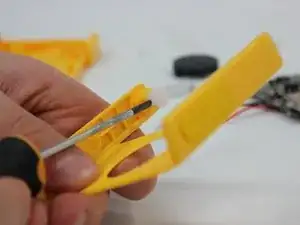

    • You will stab yourself with the screwdriver while doing this.

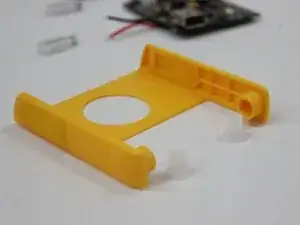

    • The white parts of the hinges will very happily fly away and get lost.

  9. DVo1XUWdTEVvfMIw
    DVo1XUWdTEVvfMIw
    BRRWsXtwRotGfjcI
    MNeGtTTJenuqOYA2

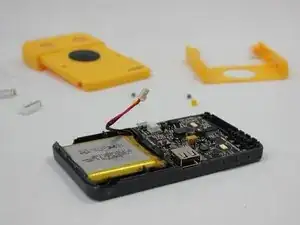

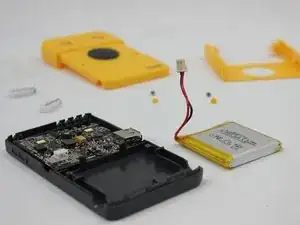

    • Pull out the connector, be careful and only pull the connector and not the wires to avoid damaging them in the process.

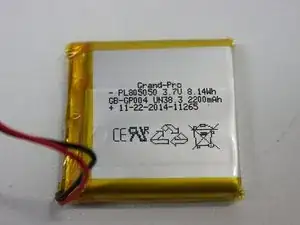

    • The battery is fixed in place with double sided tape. Make sure not to bend and damage the battery when taking it out.

    • Text on the battery:

    • Grand-Pro

    • - PL805050 3.7V 8.14Wh

    • GB-GP004 UN38.3 2200mAh

    • + 11-22-2014-11265

  10. joS4DZDD1UxOAQIb
    joS4DZDD1UxOAQIb
    axSP22igZdKH3EQW
    pkbDRkEOevghMctH

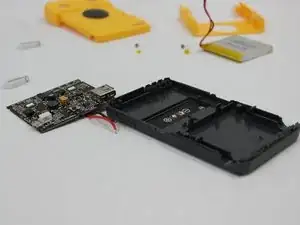

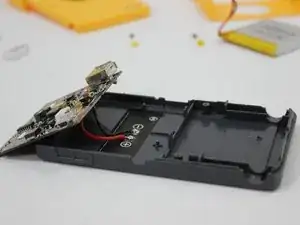

    • There are two plastic pins holding the PCB in place. You will have to break them.

    • Undo the connection between the PCB and the solar panel with a soldering iron. Do not pull the cables out, this may result in severe damage to the cables or PCB.

    • Top tip: for one time at least, you can redo the plastic pins holding the PCB by pressing a semi-hot soldering iron on the plastic.

  11. EhU6OIN6Now16VOQ
    EhU6OIN6Now16VOQ
    rgbNXVJcCUAW6kYG

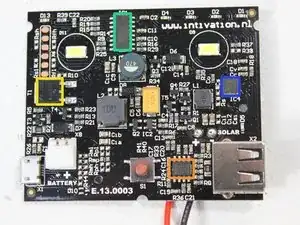

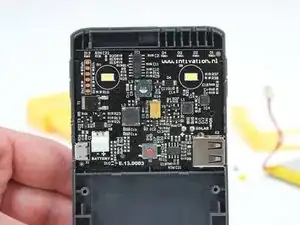

    • Most important silicon:

    • Texas instruments LM358 Dual opamp

    • Fairchild Semiconductors MJD210 PNP Transistor

    • NXP 74HC595 8Bit shift register

    • Intivation SNBST3 MPPT Solar charger with integrated MCU (heart of the Waka Waka)

    • Dsunsolar High efficiency PET film solar panel. Custom made for Intivation.

  12. sWMRQfqqRoLlKLNu
    sWMRQfqqRoLlKLNu
    5YHYOyLgpAYqgqMc

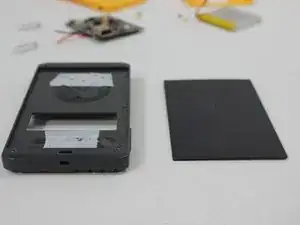

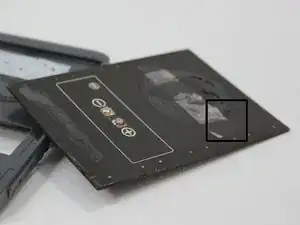

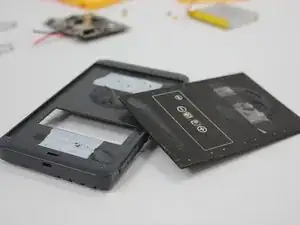

    • Use a flat object like a bank card to avoid bending the solar panel.

    • This Waka Waka has been opened up previously to this teardown. Since the solar panel was originally glued in place, the solar panel was re-attached using double sided tape. When putting your Waka Waka back together, you could either choose glue or double sided tape. Both work fine.
