Acer Aspire E5-574-53QS Back Panel Removal
Strumenti
Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.
Background
The Acer Aspire E5-574-53QS is a laptop manufactured by the hardware and electronics company Acer. The laptop has a 15-inch wide screen with a 16:9 image aspect ratio.This device was designed to be a faster processing product and display ample storage evidenced by the Acer Aspire E5-574-53QS having a 1000GB hard drive.
The Acer Aspire E5-574-53QS runs the Windows 10 Home 64-bit Edition operating system and features a Dual-Intel Core i5 processor. This device also comes with a HDMI output for consumers to have the option of connecting a HDTV to the computer. This laptop’s cost is on the $600 price range, with no increases or decreases in price within the past few years.
A common problem people have had with this particular model is the Hard Drive. While there is an ample amount of storage space, the speed of the HDD tends to be counterproductive to the relatively powerful CPU and quick-booting operating system.
This laptop measures 10.2 inches in depth, 1.2 inches tall in height, and weighs 5.29 pounds. It has a steel gray exterior and interior, with a brushed metal effect on the top cover. The keyboard is embedded into the body of the device, so only the black-colored keys are visible.
Identification

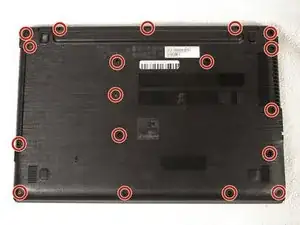

The model number is located underneath the device on a long black label in the top center of the back panel.
Specifications
Processor
- Central Processing Unit: Intel Core i5-6200-U 2.3GHz
- Max Speed: 2.8GHz
- Number of cores: Dual-Core
- Features: Intel Turbo Boost Technology 2.0
- 64-bit Computing: Yes
Audio & Video
- Graphics Processor: Intel HD Graphics 520
- Integrated Webcam: Yes
- Sound: Microphone
Display
- Display Size: 15.6 inches
- Type: LED
- Screen Resolution: 1366 x 768
- LCD Backlight Technology:
- Aspect Ratio: 16:9
- Monitor Features: CineCrystal, glare
RAM Memory
- Size: 4GB
- Configuration Features: 1 x 4GB
- Technology: DDR3L SDRAM
- Memory Speed: 1600MHz
Operating System
- OS Installed: Windows 10 Home 64-bit Edition
Hard Drive
- Type: Hard Disk Drive (HDD)
- Speed: 5400 RPM
- Storage Capacity: 1000GB (1TB)
Optical Drive
- Type: CD/DVD reader
Weight & Dimensions
- Weight: 5.29 lbs (2.4 kg)
- Height: 1.2 inches
- Depth: 10.2 inches
- Width: 15 inches
Battery
- Technology: Lithium ion
- Number of Cells: 4-cell
- Capacity: 2520 mAh
Connections/Ports
- Available Ports: HDMI, VGA, LAN, 2 x USB 3.0, 1 x USB 2.0
- Memory Card Reader: SD card reader
