Strumenti

Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.

Background

The ASUS P2540UB is a laptop, built with business professionals in mind. Its compact size and hardy outer shell are built for productivity and daily on-the-go use. This device runs on a Windows 10 operating system and features a 15.6" HD antiglare screen.

Identification

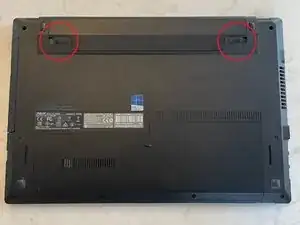

This model is identifiable by its model name located the bottom left corner. It is 15" x 10" in size and weighs 5.2 pounds. This model also comes only in black. This model also has a CD Player and a removable battery.

Technical Specifications

Processor

  • Intel® Core™ i7 8550U Processor
  • Intel® Core™ i5 8250U Processor

Operating System

  • Windows 10 Pro
  • Windows 10 Home
  • Endless OS

Chipset

  • Integrated Intel® CPU

Memory

  • 4 GB DDR4 2400MHz SDRAM Onboard memory
  • 1 x SO-DIMM socket for expansion
  • (total up to 20 GB SDRAM)

Display

  • 15.6" (16:9) LED-backlit HD (1366x768) 60Hz Anti-Glare Panel with 45% NTSC
  • 15.6" (16:9) LED-backlit FHD (1920x1080) 60Hz Anti-Glare Panel with 45% NTSC

Graphic

  • NVIDIA® GeForce® MX110 , with 2GB GDDR5 VRAM

Storage

Hard drive:

  • 500GB/1TB 5400 rpm SATA HDD
  • 500GB/1TB 7200 rpm SATA HDD

Solid state drive:

  • 128GB/256GB/512GB SATA 3.0 M.2 SSD

Optical Drive

  • Super Multi DVD (optional)

Keyboard

  • Chiclet keyboard with isolated numpad key

Card Reader

  • Multi-format card reader (SD/SDHC/SDXC)

WebCam

  • VGA/HDWebCam

Networking

Wi-Fi

  • Integrated Wi-Fi 5 (802.11 ac)
  • Integrated Wi-Fi 5 (802.11 ac (2x2))

Bluetooth

  • Bluetooth® 4.1

Interface

  • 1 x COMBO audio jack
  • 1 x VGA port
  • 3 x Type-A USB 3.0 (USB 3.1 Gen 1)
  • 1 x USB 2.0 port(s)
  • 1 x RJ45 LAN jack for LAN insert
  • 1 x HDMI
  • 1 x Fingerprint reader (Optional)
  • 1 x AC adapter plug

Audio

  • Built-in 2 W Stereo Speakers with Microphone
  • ASUS SonicMaster Technology

Battery

  • 4 -Cell 3000mAh 44Wh
  • 6 -Cell 3000mAh 66Wh Battery

Power Adapter

Plug type:

  • ø4.5 (mm)

Output:

  • 19 V DC, A, 65 W

Input:

  • 100 -240 V AC, 50/60 Hz universal

Dimensions

  • NB: 380 x 256 x 23.3 ~26.3 mm (WxDxH) (w/ 4-Cell Battery)

Weight

  • NB: 2.17 kg with battery

Security

  • Kensington lock
  • BIOS user password protection
  • HDD user password protection
  • TPM (Trusted Platform Module) (Optional)
  • Fingerprint reader
  • fTPM (Firmware-based Trusted Platform Module)

Certificates

UL, CE Marking Compliance, BSMI, CCC, CB, EPEAT, Energy Star, CECP, RoHS

Additional Information

Asus Website for AsusPro P2540UB and Helpdesk

Newegg: AsusPro P2540UB

On some Chinese versions, its model number is PRO554.
