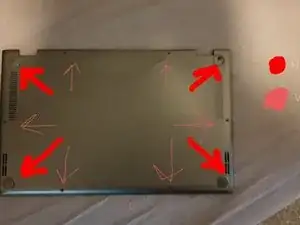

Back Cover

Back Cover

 en

Background

The Asus Zenbook flip is a series of laptops designed and manufactured by Asus which feature a full 360° Screen rotation. The laptop is designed as a workstation with great versatility in types of workload that it is capable of with an 8th Generation Core I7 processor and GTX 1050 Max Q providing sufficient performance for workloads such as video rendering, editing, or 3d modeling.

Though the UX562FA features a Smart Touchpad which itself had a touchscreen, this only came with this specific model of the Zenbook 15 flips and later models (Like the OLED models)did not feature this. The Zenbook flip came with alternative specifications which increased the storage capacity, increased on-board Memory from 8GB to 16GB of RAM, Higher quality display up to 4K UHD, etc.

Identification

The Asus Zenbook Flip UX562 features a full 360° rotating screen and a touchpad which is also a second screen making it very easy to distinguish from other models. Weighing in at just under 5lb (4.19 lbs) and measuring 35.70 cm x 23.00 cm x 2.09 cm or 14.06" x 9.06" x 0.82" (W x D x H).

Serial number and Model name can be found on the bottom of the Laptop, on the Packaging Box and Warranty Card.

Technical Specifications

Model:

UX562FA

Operating System

  • Windows 10 Home
  • Windows 10 Pro
  • Windows 10 Pro (Business)

Processors

  • Intel Core i7-8565U 1.8 GHz
  • Intel Core i5-8265U 1.6 GHz
  • Intel Core i5-10210U 1.6 GHz
  • Intel Core i7-10510U 1.8 GHz

Graphics

  • Intel® UHD Graphics 620
  • Nvidia GTX 1050 Max Q 2GB GDDR5

Display

  • 15.6-inch, FHD (1920 x 1080) 16:9 aspect ratio, IPS-level Panel, LED Backlit, 60Hz refresh rate, 250nits, 45% NTSC color gamut, Glossy display, Touch screen, With stylus support
  • 15.6-inch, FHD (1920 x 1080) 16:9 aspect ratio, IPS-level Panel, LED Backlit, 60Hz refresh rate, 250nits, 45% NTSC color gamut, Glossy display, Touch screen, (Screen-to-body ratio)90%, With stylus support

Memory

  • 8GB DDR4
  • 12GB DDR4
  • 16GB DDR4

Storage

  • 512GB M.2 NVMe™ PCIe® 3.0 SSD
  • 256GB M.2 NVMe™ PCIe® 3.0 SSD
  • 128GB M.2 SATA SSD, 1TB SATA 5400RPM 2.5" HDD
  • 1TB M.2 NVMe™ PCIe® 3.0 Performance SSD
  • 1TB SATA 5400RPM 2.5" HDD, 256GB M.2 NVMe™ PCIe® 3.0 SSD

I/O Ports (all included)

  • 1x USB 2.0 Type-A
  • 1x USB 3.2 Gen 1 Type-A
  • 1x USB 3.2 Gen 1 Type-C
  • 1x HDMI 1.4
  • 1x 3.5mm Combo Audio Jack
  • 1x Headphone out
  • Micro SD card reader

Network and Communication

  • Wi-Fi 5(802.11ac) (Dual band) 2*2 + Bluetooth® 5.1 Wireless Card (*Bluetooth® version may change with OS version different.)
  • Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.2 Wireless Card (*Bluetooth® version may change with OS version different.)

Battery

  • 56WHrs, 4S1P, 4-cell Li-ion

Weight & Dimension

  • 4.19 lbs
  • 35.70 cm x 23.00 cm x 2.09 cm
  • (W x D x H)

Additional Information

Manufacturer's overview of the device, you will find additional information about other models of the same series:

Asus Zenbook Overview (features other models)

FAQ and additional support regarding a specific model

Zenbook Flip 15 UX562FA FAQ and Support

The English Manual for the UX562FA in English (Other languages can be found on the FAQ and support page)

Zenbook Flip 15 UX562FA Manual

If looking to upgrade storage and RAM, a compatibility check

Crucial Storage and Memory Compatibility
