Background and Identification

Sod cutters are used to relocate existing sod or establish areas for planting. This is done by cutting under a layer of dirt with a sod cutter, and then lifting and rolling the slab of dirt and lawn cover (referred to as sod) attached to it, leaving clear dirt behind.

Sod cutters can be handheld, and resemble a shovel with a square, flat edge. However, they are usually motorized, as this reduces the manual labor needed. The Classen Sod Cutter advertises vibration-reducing design that makes the sod cutter easier to control and maneuver.

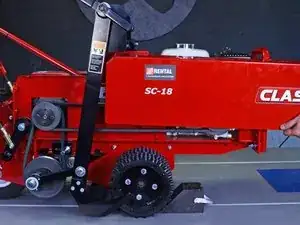

The Classen Sod Cutter Gear-Drive model can be identified by the lettering on the side of the body, which says SC-18 in white letters. On the Hydro-Drive model, this lettering will say HSC18, as well as the word ‘Pro’ under the Classen logo.

Technical Specifications

Note: this information is specific to the Classen Sod Cutter Gear-Drive model 18A/5.5. The Gear-Drive model 18A/8 and the Hydro-Drive models have slightly different specifications, which can be accessed here (18A/8) and here (Hydro-Drive).

Engine:

  • 4-cycle, Honda® GX160. 9.9 cu . in. (163 cc)
  • Starter: Recoil
  • Governor: 3400 RPM + 200 RPM, no load
  • Clutch: spring loaded belt tightener type

Reduction:

  • Engine to Blade: 3.03 to 1
  • Engine to Drive Wheels: 57.2 to 1

Wheels:

  • Drive: 8-5/8" (219mm) Dia. with knobby tread vulcanized to hub
  • Rear: 8 x 1.75 (203 x 45mm) semi-pneumatic tire

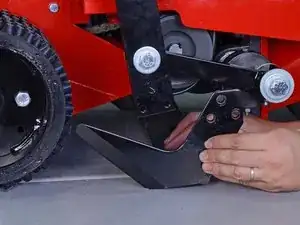

Blade:

  • Cutting Width: 18"
  • Optional Blade Kit Widths: 12", 16", 20", 24"
  • Cutting Depth: 12”, 24” with blades: 1.5" or 16”, 20” with blades: 2”
  • Blade Speed: 1200 strokes/minute @ 3400 engine RPM

Dimensions:

  • Dimensions - Wheel Base: 22"
  • Dimensions: 54"L x 34"H x 24"W
  • Weight: 304 lbs

Additional Information

Classen Sod Cutters - Product Page

How to Use a Sod Cutter

Engine: Honda GX160UT2
