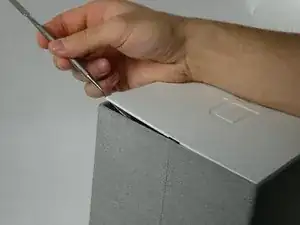

Access Panel
Strumenti
Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.
Troubleshooting
A link to the troubleshooting guide for this device can be found here.
Background
The Definitive Technology W7 is a speaker released by Definitive Technology in July of 2015. The device comes in two colors: black or white. This device is part of the wireless collection of Definitive Technology speakers, and the it is the only device in the family with a form factor that allows it to be portable. The speaker can be operated using the Definitive Technology mobile app, which allows the user to have the speaker play audio from a mobile device. The equalizer settings, audio quality, and portability, are integral parts of why this device has received an average of four stars on Amazon. There has not been a successor device released.
Identification

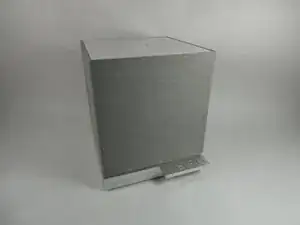

This device can be easily recognized by its form factor. It is the only device in the wireless family in the shape of a square. Additionally, it only comes in two colors, white and black. There is also "Definitive Technology" inscribed on the front-bottom of the device, near the power button and volume controls.
Technical Specifications
Dimensions
Width - 5.87"
Height - 6.93"
Depth - 6.65"
Wireless Connectivity
Wireless Protocol - 802.11n -2.4Ghz or 5.8GHz
Audio Inputs
Toslink Optical
Analog 3.5 mm Mini-Jack (AUX)
Amplification
1 x 30W Woofer
4 x 15W Tweeters
Drivers

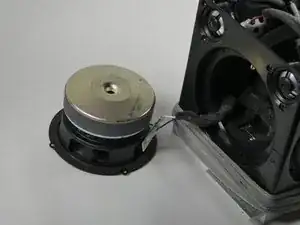

1 x 4.0" Midwoofer

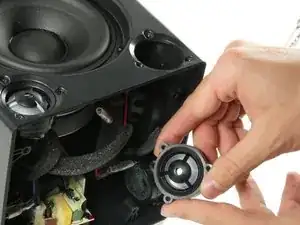

4 x 1.0" aluminum dome tweeters
2 x 4.0" bass radiators
Power

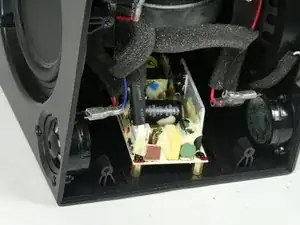

100-240~ 50/60Hz 180W power supply
Additional Inputs
Ethernet for wired connection to router
Additional Information
Definitive Technology W7 official website
