General Info

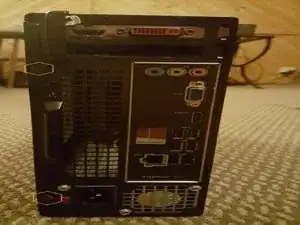

An economy priced desktop from Dell Inc. This slim tower design is a small form factor PC with decent specs and power.
Processor Details
CPU
- Intel Pentium G630 / 2.7 GHz
Number of Cores
- 2
64-bit Support
- Yes
Chipset Type
- Intel B75 Express
Processor Socket
- LGA1155 Socket
Installed Qty.
- 1
Max Supported Qty.
- 1
Type
- Pentium
Processor Number
- G630
Manufacturer
- Intel
Clock Speed
- 2.7 GHz
Motherboard
Type
- X4FT6 - Motherboard, Wistron
Processor Socket
- LGA1155 Socket
Chipset Type
- Intel B75 Express
Ram
Ram Type
- DDR3 SDRAM - non-ECC
Ram Speed
- 1066 MHz
Features
- unbuffered
Configuration Features
- 2 x 2 GB
Installed Size
- 4 GB
Max Amount
- 8 GB
Form Factor
- DIMM 240-pin
Available Ram Slots
- 2
Cache Memory
Installed Size
- L3 cache - 3 MB
Cache Per Processor
- 3 MB
Type
- L3 cache
Per Processor Size
- 3 MB
Installed Size
- 3 MB
Hard Drive
OEM HDD
- 1 x 500 GB
Interface Type
- SATA 3Gb/s
Spindle Speed
- 7200 rpm
Type
- HDD & SSD Support
Interface Class
- Serial ATA
Optical Drive
Drive Type
- DVD-Writer
Type
- DVD±RW
Graphics Controller
Form Factor
- integrated
Graphics Processor
- Intel HD Graphics
Video Interfaces
- HDMI, VGA
Networking
Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Form Factor
- integrated
Wireless LAN Supported
- Yes
Wireless NIC
- Dell Wireless 1506
Other Specs
Wireless adapter
- Protocol 802.11b/g/n
Card Reader
- Type 8 in 1 Card Reader Slot
Audio Capability
- integrated 5.1 channel surround High Definition Audio
Weight
- 13.23 lbs
Width
- 3.9 in
Depth
- 14.8 in
Height
- 10.7 in
