Background and Identification

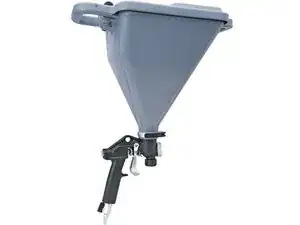

The Graco Paint Sprayer model 245924 is a texture gun and hopper paint sprayer designed to spray acoustics, drywall mud, waterproofing material, pool-deck sealant, stucco, and most gravity-fed materials. It includes a double-handle and lightweight design to provide control for ceiling, wall, and floor applications. Hopper guns use gravity to push the material into the spray nozzle. Gun and hopper sprayers are generally used to produce texture finishes on interior ceiling and wall surfaces.
The handles on both sides of the sprayer allow it to rotate 180 degrees for more control. The sprayer includes an angled 1-1/2-gallon capacity hopper (container) to provide longer spraying periods before refills. The sprayer includes a metal trigger and a trigger adjustment that allows fine-tuning of fluid output for more precise and consistent finishes. No tools are needed to attach the hopper to the sprayer’s gun. Generally, the Graco Paint Sprayer model 245924 comes with four different nozzles, 4 mm, 6 mm, 8 mm, and 12 mm.
The Graco Paint Sprayer model 245924 is meant to be used only with water-based materials. It has a maximum working air pressure of 100 pounds per square inch (PSI) and a maximum working fluid pressure of 60 PSI. The Graco gun and hopper generally include a blue/grey hopper that does not have any identifying characteristics aside from one handle at the front and back of the device.
Technical Specifications
Details:
- Weight (lbs.): 4 lbs
- Hopper Capacity: 1-1/2 Gallon (5.7 L)
Dimensions:
- Assembled Depth (in.): 18 in
- Assembled Height (in.): 14 in
- Assembled Width (in.): 11 in
