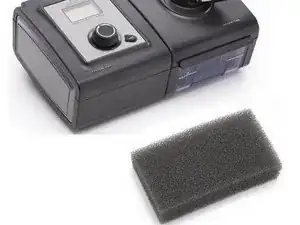

Air Filter
Troubleshooting
If you are having difficulties with the BIPAP S model , try referring to the Troubleshooting Page
Background and Identification

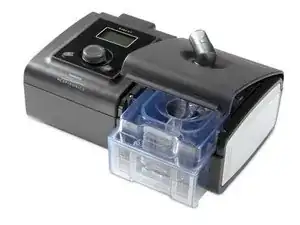

The BiPAP S/T is a non-invasive ventilator released by Philips Respironics in 2011. This model is identified by the part number DS1060S indicated on the underside of the ventilator system and further by the name displayed on the screen when activated.
The BiPAP S/T is aligned with the same platform as our System One sleep therapy technology. This system includes a wide pressure range (4-25cm), adjustable ramp, automatic altitude adjustment, automatic leak compensation, Bi-Flex comfort technologies, and a universal power supply. It offers a straightforward user interface and integrated heated humidification for easy setup and management in the hospital or at home.
Specifications
Functions : IPAP and EPAP
Modes: Spontaneous Mode, Spontaneous Timed Mode, and Timed Mode.
Pressure and Flow Characteristics: 4cm H2O to 20 cm H20 @ 60L/min flow
Pressure Calibration Accuracy: ±2 cm H2O of the indicated control setting.
Pressure Settings Stability: ±1 cm H2O over 8 hours
Breaths Per Minute: 4 to 30 BPM
Breathing Rate Accuracy: ±10% or 2 BPM of indicated reading
%IPAP: 10 to 90%
%IPAP Setting Accuracy: ±10% of indicated setting
Minimum IPAP Time: Approximately 200msec
Maximum IPAP Time: 3 seconds ±0.5 second at a constant flow rate condition of 100 liters per min
Minimum EPAP Time: 500msec ±75 msec
Spontaneous Inspiratory Effort Threshold: 47.5cc/sec
Current Consumption: 800mA for 100 to 130 VAC, 400mA for 200 to 260 VAC
Unit Dimensions: 7.75 x 9 x 12.1875 in (20 x 23 x 31 cm)
Weight: 9.5 lbs (4.3kg)
Operating Temperature: 50 to 100°F (10 to 38°C)
Storing Temperature: -20 to 140°F (-30 to 60°C)
