Background Information

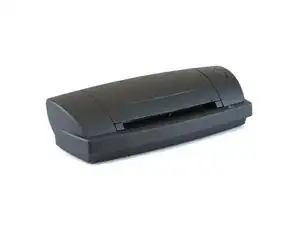

Introduced in 2014 by Scanshell, the ScanShell 800Dx is described as a high-speed light weight duplex ID Scanner. It can scan both sides of an inserted document simultaneously and is designed to accommodate id cards, insurance cards, and drivers licenses.

Tech Specs

General

  • Required OS: Windows
  • Manufacturer: CSSN Inc.

Image Sensor

  • Dual, Linear color CMOS CIS (contact image sensor)

Optical Resolution

  • 600 x 1200 dpi

Interface

  • USB 2.0

Power Consumption

  • Stand-by: 0.2W
  • Scanning: 2.0W

Scanning Area

  • Maximum: 4.25in x 7.25in (106mm x 184mm)

Scan Speed

  • Color: 6 Pages/Min
  • Gray: 12 Pages/Min
  • Black/White: 12 Pages/Min

Scan Modes

  • 48-bit Internally
  • 24 Bit true Color
  • 8 Bit Gray Scale
  • 1 Bit Black/White

Paper Sensor

  • Electro Mechanical

Compatibility

  • Twain

Dimensions

  • Length: 8”
  • Width: 2.75”
  • Height: 1.8”
  • Weight: 16.9 oz
  • Paper Thickness: 0.1mm - 1.5mm

System Requirements

  • O/S: Windows 98SE, ME, 2000, XP, 7, and 10
  • CPU: {emtium 100MHz or higher
  • DRAM: 64MB
  • Monitor: VGA with true color and at least 800x600 pixels
  • Storage: 60 MB of free space
  • USB: One Port
