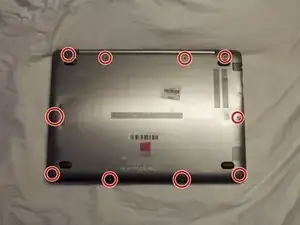

Backplate
Strumenti
Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.
Troubleshooting
Click here to access the Samsung ATIV Book 7’s troubleshooting page
Background Information
The Samsung ATIV Book 7 NP740U3E-K01UB is the seventh iteration of the Samsung Ultrabook series. Upon the laptop’s release in early 2013, the machine was a solid addition the ultrabook family featuring its stylish but sturdy all-metal design, a touch-enabled 1080p display, and a battery life that would last through most of a work day’s usage. Considering that the machine hosts Intel’s integrated HD graphics 4000 card, the ATIV Book 7 is not built for intensive gaming but is properly outfitted to support general web-browsing, video, and casual / browser based gaming.
The Samsung ATIV Book 7 measures at 0.74 x 12.76 x 8.82 inches (HWD) and weighs about 3.6 pounds. This makes the device a bit bigger comparatively to its competitors but the heavier construction offers a sturdy build that does not flex or bend. The ATIV Book 7 is a great laptop choice for users looking for a sturdy, affordable, and adequately spec’d touchscreen-enabled premium ultrabook.
Stand-out Features:
- 13.3-inch display, 10-digit touch capability offering both 1920-by-1080 resolution
- Display features 350 nits of backlit brightness
- Speaker System, 2x 2-watt JBL stereo speakers
General Specs:
- 1x USB 3.0 port, 2x USB 2.0 ports, 1x Compact Gigabit Ethernet port
- HDMI output, SD card slot (SD/SDHC/SDXC), stereo headset jack
- 802.11n Wi-Fi, Bluetooth 4.0, Wi-Di 2.0
- 128GB solid-state drive (SSD)
- 1.8GHz Intel Core i5-337U processor
- Dual-core ultra-low-voltage CPU
- 4GB of RAM
- Intel Integrated Graphics: Intel HD Graphics 4000
