Guide Sostituzione

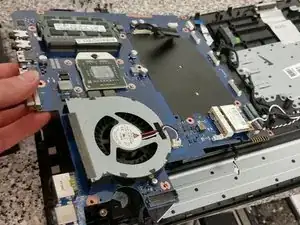

Motherboard

Motherboard

 en

Strumenti

Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.

Background and Identification

The Samsung Series 3 Notebook model NP305V5A is a 15.6-inch budget laptop released by Samsung in 2011. The laptop is designed as a highly portable computer for work or multimedia play.

The Samsung Series 3 Notebook model NP305V5A relies on a dual-core 2.1 GHz AMD A4-3310MX processor with a 2 MB cache that can be overclocked to work at speeds up to 2.5 GHz. This model handles graphics with its integrated AMD Radeon Graphics card. It runs on the Genuine Windows 7 Home Premium (64-bit) and includes 4 GB of internal DDR3 SDRAM memory and 320 GB SATA hard drive.

The Samsung Series 3 Notebook model NP305V5A’s 15.6-inch LCD display features a resolution of 1366 by 768 pixels. The computer uses LED-backlighting and a full-sized 103-key keyboard with a mouse touchpad. The Series 3 Notebook includes three USB 2.0 ports, an HDMI port, a VGA port, a 3.5mm headphone jack, and a 3.5mm microphone input. The computer also features a CD/DVD Burner with DVD DL support, dual 1.5-Watt speakers, and a 1.3-megapixel webcam. A 4-in-1 card reader slot that supports SD, SDHC, SDXC, and MMC memory cards is included.

The Samsung Series 3 Notebook model NP305V5A supports Wi-Fi 802.11b/g/n so users can connect to wireless routers and hotspots. Bluetooth 3.0 is also supported for communicating with other Bluetooth enabled devices. The laptop includes the name “Samsung” in capital letters in the center of the laptop’s bottom bezel.

Technical Specifications

Performance:

  • Processor: AMD
  • GPU: AMD Radeon

Display:

  • Size: 15.6"
  • Aspect Ratio: 16:9
  • Resolution: 1366 x 768
  • Finish: Matte
  • Maximum Brightness: 220 cd/m2

Drives:

  • Optical Drive: SuperMulti DVD Burner

Input/Output Connectors:

  • Ports: 3 x USB 2.0
  • Display:
    • 1 x HDMI
    • 1 x VGA
  • Audio
    • Integrated Microphone
    • 1 x 1/8" / 3.5 mm Microphone Input
    • 1 x 1/8" / 3.5 mm Headphone Output
  • Expansion Slots: None
  • Media Card Slots:
    • SD
    • SD/SDHC
    • SD/SDHC/SDXC
    • MMC

Communications:

  • Network: 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
  • Modem: None
  • Wi-Fi: Wi-Fi 4 (802.11n)
  • Bluetooth: Bluetooth 3.0+HS
  • Mobile Broadband: None
  • GPS: None
  • Webcam: User-Facing

Battery:

  • Power Requirements: 100-240 VAC, 50/60 Hz

General:

  • Security: BIOS Booting, Kensington Lock Slot
  • Keyboard: 103-Key Numeric Keypad
  • Pointing Device: TouchPad
  • Dimensions (W x H x D): 14.4 x 1.2 x 9.4" / 36.6 x 3.0 x 23.9 cm
  • Weight5.49 lb / 2.49 kg

Additional Information
