Antenna
Strumenti
Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.
Troubleshooting
For more information regarding common troubleshooting issues, click here: Samsung Portable Dualband Tri-Mode Troubleshooting
Background
Device Name: Samsung Portable Dualband Tri-Mode Phone
Model Number: SCH-N150
Release Date: May 18, 2001
Distinguishing Features: Front flip cover that protects keypad
Major Facts: The SCH-N150 is an entry-level CDMA phone that features capabilities such as two-way text messaging and Internet access.
Identification
The Samsung Portable Dualband Tri-Mode model number (SCH-N150) is found on the manufacturer label underneath the removable battery.
Specifications and Features
Features - Availability
- Weight: 4.2 oz.
- Dimensions: 4.57" x 1.97" x .84"
- Cellular Technology CDMA
- Analog Support (Older Cellular System): yes
- Included Games: yes
- Phone Book Entries: 100
- Stand-by Time: 140 hours
- WAP: yes
- Alarm Clock: yes
- Call Transfer: yes
- Call Waiting: yes
- Caller ID: yes
- E-mail: yes
- Fax: yes
- Voice Dialing Numbers: yes
Samsung phone/battery specifications
Dual Band: CDMA 1.9GHz / CDMA 800 MHz/AMPS 800 MHz
Display Screen: Graphical LCD up to 6 lines w/1 dedicated Icons Line)

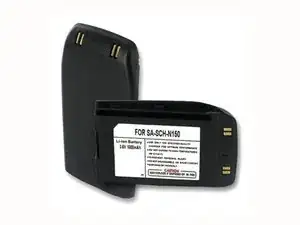

Battery Type: Standard: Lithium-Ion

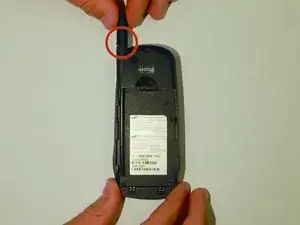

PCS Antenna: Retractable, user-replaceable
Samsung phone with standard battery
Dimensions (H x W x D:) 4.5 x 2.0 x 0.8 inches or 116 x 52 x 21 mm
Weight: 4.2 oz. (120 g)
Volume: 107 cc
Talk Time Digital: Up to 2.8 hours
Standby Time Digital: Up to 140 hours
Analog: 15 hours
Sony Corp. TYPE BST0369DE, Rated 3.7V 900mAH LI-ion
Samsung phone with extended battery
Dimensions (H x W x D:) 4.5 x 2.0 x 1.0 inches or 116 x 52 x 24.5 mm
Weight: 4.4 oz. (125 g)
Volume: 112 cc
Talk Time Digital: Up to 3.9 hours
Analog: Up to 1.6 hours
Standby Time Digital: Up to 200 hours
Analog: 23 hours
Sony Corp. TYPE BEX036DDE, Rated 3.7V 1300mAH LI-ion
