Blade/ Blade Cover
Strumenti
Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.
Background
This electric saw has a 2 HP capability with a 5-foot-long cord that must be plugged in, to power the saw. The saw is powered by a 110 Voltage and comes completely assembled in the shipping box, aside from the blade which can easily be attached using the assembly guide on the official Sears website.
Craftsman is the original manufacturer of this tool and was a house brand first established by Sears. Currently, they are owned by Stanley Black & Decker. Many of their hand tools and materials are now manufactured in China, though select tools are still made in the US. They continue to sell products mainly in the United States and Canada.
Circular saws are a common tool to use for DIY projects. They are versatile in the kinds of projects they can be used for, but their main purpose is cutting pieces of lumber for any project that requires wood with a thickness under 2 1/4".
This model is relatively similar to the model before and after it, in that they have similar voltage levels, blade diameters, and the overall design of the product. Repair parts for these tools are no longer available for purchase from the original manufacturers or distributors; however, replacement parts or the entire product can be found on resale websites like eBay.
Circular saws are most commonly used for a straight cut. These saws are also helpful for beginners because they are generally not difficult to use and with many safety precautions already built into the device; they make great tools for those looking to work on home renovations and projects.
Identification

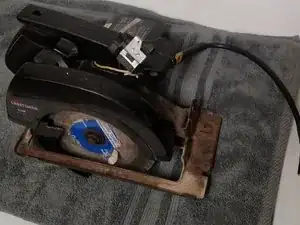

This device has a black covering surrounding the silver blade of the 7 1/4" circular saw. It is made up of two different sections: the base and blade assembly and the gear assembly. The base and blade portion of this device looks like a standard 7 1/4" circular saw with the Craftsman logo across the side of the base portion of the device. The model number for this product is 315.109020.
Technical Specifications
Horsepower: 2
Blade Diameter: 7-1/4 in. (184 mm)
Blade Arbor: 5/8 in. (16 mm)
Rating: 110 volts
Cutting Depth at 0° Bevel Cut: 2 1/4" (57.15 mm)
Sources:
Sears Craftsman 315.109020 Website
Newer Model Craftsman Circular Saw
