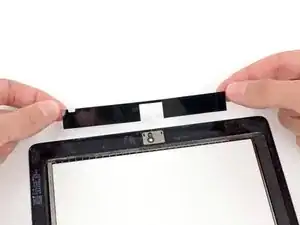

Adhesive Strips (Existing Panel)
Strumenti
Questi sono alcuni strumenti di uso comune usati per lavorare su questo dispositivo. Potrebbe non essere necessario ogni strumento per ogni procedura.
Repairability Score
Identification and Background
Announced October 23, 2012 and available on November 2, the iPad 4 is the fourth generation in the iPad family. Updated from the "new" iPad (iPad 3) with a FaceTime HD front facing camera, the faster A6X processor, and a Lightning connector, the fourth generation iPad has more under the hood in the same sleek package.
The iPad 4 can be identified by its model number, A1458, found on the lower rear case.
Specifications
Announce date: October 23, 2012
Model Number: A1458
Color display: 9.7 inches (25 cm) LED backlit in-plane switching LCD
Processor: Dual-core Apple A6X processor
Resolution: 2048-by-1536 resolution at 264 pixels per inch (ppi) "Retina Display"
Graphics: Quad-core PowerVR SGX MP4+
RAM: 1GB
Storage: 16, 32 or 64 GB flash memory
Wireless: Integrated 802.11n and Bluetooth 4.0
Battery: Built-in lithium-polymer 42.5 W·h (10 h usage, 9 on 3G)
Weight: 1.44 pounds (652 g)
Dimensions: 9.50 inches (24.1 cm) x 7.31 inches (18.5 cm) x 0.34 inches (.86 cm)
Troubleshooting
- Diagnose and repair screen backlight issues with our iDevice Backlight Troubleshooting Page.
