1999-2007 Chevrolet Silverado Brake/Taillight Replacement

Difficoltà

Easy

Passi

9

Tempo Necessario

5 - 10 minuti

Introduzione

In this guild you will learn how to fix/replace your taillight on your Chevy Silverado truck. Often times, a taillight will randomly go out just from use or possible damage. Here is a quick 5 min fix showing you how do get the job done, save you a little money, and not go to the auto-shop to get it fixed.

The only tool needed for this fix will be a Philips head 2x100mm screwdriver.

  1. O2XUn4eNSMuc4CME
    O2XUn4eNSMuc4CME
    4i5DbJ3QXJ6SsgMU

    • Use a Phillips screwdriver to remove the top and bottom screws that are in line with the tailgate.

  2. QHmyQV6oFem45Y5s

    • Remove the taillight from housing.

  3. 4qBIx6jp5MHgJs5C
    4qBIx6jp5MHgJs5C
    oLrtaLEeExliZBIq

    • Do a quarter twist to unlock damaged light.

    • You should feel the light housing stop once you unlock it.

  4. XSppDZUKTywpOAiO

    • Pull out the light from the housing

  5. v6eiVUwrEbcTcFPQ
    v6eiVUwrEbcTcFPQ
    KlwGAbyT4jNYRfoo

    • Remove the bulb from the socket.

  6. gkugWRqi4XXueWho

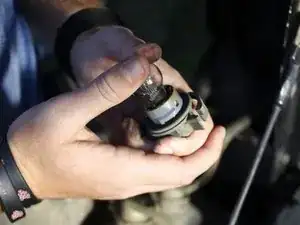

    • Put in the new light.

  7. MJYByVlMqDTkytla
    MJYByVlMqDTkytla
    qkjmETfLVIjEgjTY

    • Put the light and connection back in place and turn it back to the lock position.

  8. KAwYnBQTewsS6c4G
    KAwYnBQTewsS6c4G
    s2KGkWxDhAqpWvsm

    • Place the whole light back to where the screw holes on the tailgate side line up

  9. ONpuIbasMrOgXnUf
    ONpuIbasMrOgXnUf
    qqSO1rQmg1yR5uXs
    rATLvVpevrsEHyPH

    • Reinsert the screws and tighten until the taillight is secure.

Conclusione

To reassemble your device. Follow these instructions in reverse order.
