If you're experiencing slower-than-normal or inconsistent playback speed, you may have an issue with either the drive belt or the motor. Replacing the drive belt is relatively simple since you installed this when first setting up the turntable. If that doesn't seem to fix the problem, swapping out the motor should resolve it for you.
Ricambi
-
-
Ensure your tonearm is held in place by the rest clip to avoid damage to the tonearm or the rest of the turntable.
-
-
-
A #1 Phillips-head bit is recommended to remove these screws
-
Remove and set aside the rubber washers so they don't fall into the turntable body.
-
-
-
Flip over the unit and remove the six screws holding the black plastic cover in place.
-
A #2 Phillips-head bit is recommended for these screws, though a #1 will work if necessary.
-
-
-
There are no latches on the PCB connector. Simply pull on the connector to remove from the main circuit board.
-

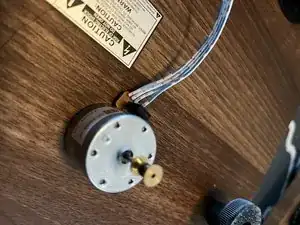

The motor has the serial number: EG-530SD-3F
-
-
-
If your replacement part does not include a connector or the necessary wires, you may need to remove and re-solder the new motor to the existing wires.
-
-
-
Reattach the main circuit cover with the six screws from earlier.
-
Add the rubber washers back into the grooves around the motor, then look through the washer and line it up with the small holes on the motor (see attached photo).
-
Reattach the dust cover and you're good to go!
-
