2005-2010 Hummer H3 Faulty Speaker Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

35 - 50 minuti

Introduzione

This guide is meant to be used for the 2007 Hummer H3.

Keep in mind that there may be discrepancies if you use this guide for a different model year.

In this guide, there are two wires to disconnect. To prevent injury/harm, it is recommended that the vehicle be switched off, followed by disconnecting the battery.

  1. XVvYYMP1vujOZtLq
    XVvYYMP1vujOZtLq
    eh1IXPZ5hgGt4Ctj

    • Ensure the vehicle is turned off before accessing the battery.

    • Remove the negative terminal first, followed by the positive terminal. Removing the positive terminal first could result in a direct short to the ground.

    • Use your 10-millimeter wrench to remove the hex nuts on the negative terminal. (Image 1)

    • Once the negative terminal's hex nut is removed, we can tuck the negative terminal and cable beside the battery. (Image 2)

    • Repeat these two steps for the positive terminal.

  2. dvlZIWdQGOBWkEdM
    dvlZIWdQGOBWkEdM
    g4xQKQ3KQLWrxVnD
    1SPATQFYG1fukIxG

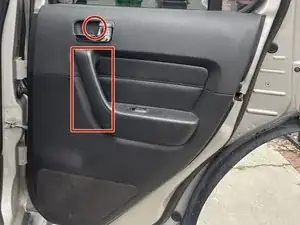

    • Identify plastic covers (Image 1)

    • Remove plastic covers with tweezers (Image 2 & 3)

    • Be careful not to scratch the plastic when you remove the coverings with the tweezers.

  3. REMPmKVKQOqqByJZ
    REMPmKVKQOqqByJZ
    ibYRUVHXmixkYBJJ
    YWAAgefCcDLGMcXV

    • Remove the three highlighted fasteners with the T30 Torx Screwdriver. (Image 1 & 2)

    • Use the magnetic pickup tool for loosened stubborn fasteners that are difficult to remove from the socket (Image 3)

  4. nNc4XRMJwpyyRbxa
    nNc4XRMJwpyyRbxa
    ceMGZpQ1HW2YWFCp
    c5O5sEuQjadnidUr

    • The door panel will not fully detach in this step. Do not yank after the panel is released from the frame!

    • It is recommended to have an extra helping hand for the following steps.

    • Shimmy the prybar along the outlined area until you feel a slight detachment from the door panel. (Image 1)

    • Grab the door panel and pull the bottom portion towards yourself slightly. (Image 2)

    • With the panel pulled slightly towards you, you can lift it, releasing it from the frame. (Image 3)

  5. uLZl3niAeVZX5JDw
    uLZl3niAeVZX5JDw
    3lcQGrHAELcj2Z3m
    2cRkTli3AVN5TmlF

    • Do not yank the door panel.

    • Having an extra helping hand hold the panel while you complete the following steps is recommended.

    • Locate the two metal cables used for the handle and locking mechanism attached to the ball sockets behind the door panel. (Image 1)

    • Rotate the yellow cable 90 degrees counterclockwise and lift the cable from the ball socket. Repeat for the green cable. (Image 2)

    • With both cables removed from the panel, we can now remove the Blue electrical cable.

    • Press on the clip of the blue cable and gently unplug. (Image 3)

  6. 25yQbGeDtv6xUVOn
    25yQbGeDtv6xUVOn
    YYhmyshTt4NbRcIc
    QeWVuoNPc2iv4Aow

    • Locate the four fasteners that hold the speaker in place. (Image 1)

    • Use the Phillips Head Screwdriver size PH2 to remove the four fasteners (Image 2)

    • With the fasteners removed, we can gently pull the speaker out, which will reveal the final cable.

    • Locate the clip on the cable connected to the speaker and gently unplug it. (Image 3)

Conclusione

To reassemble your device, follow these instructions in reverse order.
