Introduzione

If the turn signal stops working in your 2013 KIA Soul, follow this guide to safely access and swap the lightbulb.

A working turn signal is an important feature of any car and can prevent accidents when driving. In addition, if your turn signal light is out, you may find yourself pulled over by the local police and ticketed.

Before you begin this guide, be sure that your car is off and in park, with the emergency brake on for extra safety.

When handling the new bulb, don't touch the glass with your bare hands as the oils on your fingers may can damage the glass and cause areas where heat may concentrate. This may significantly reduce the life of the bulb or it could shatter.

  1. vuvZ5YvPCruwhsWH
    vuvZ5YvPCruwhsWH
    G3jLAyPLEZZ26PoV
    HTI2pxJkCHShXuC5
    • To access the battery and headlight, open the hood of the car.

    • Pull the lever near the foot pedals inside the car on the driver's side, to unlock the hood.

    • Use the hood lift support on the right side of the car to prop the hood open for repairs.

  2. SIlE1GfUZ6wSHfHk
    SIlE1GfUZ6wSHfHk
    bcJghJYsQDfcIFXi
    1FMQkBEpPlBrISTV
    • Make sure the engine is off and the car is in park before proceeding.

    • Remove the negative terminal cable from the battery by loosening the bolts on the clamp.

    • The connector should be able to slide off and be moved to the side.

  3. pmaRHE5WJqq6i3F2
    pmaRHE5WJqq6i3F2
    de4qxcNmmfMJwCNd
    32IQQA3u1Ng2cRCI

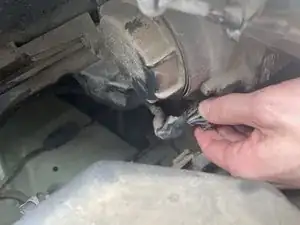

    • Toward the front of the car, the headlight connector is attached to the back of the headlight.

    • Gently separate the connector from the socket.

  4. bJPAV5OAfjKWUwxb
    bJPAV5OAfjKWUwxb
    sqPBBbxV1HDsxitQ
    • Use a 10 mm socket wrench to remove the two 19 mm Hex body bolts that connect the headlight to the frame of the car.

    • They are located on top of the headlight above the connector cable.

  5. y6NEEmDiL2JJYfmM
    y6NEEmDiL2JJYfmM
    r1GyOQQBuZrHPNcT
    kGoAcnaqCdOP444P
    • Wiggle and pull the headlight to remove it from the frame of the car.

  6. AvvvatnUnVpLonAL
    AvvvatnUnVpLonAL
    ftCyFyQfWbAXDEJZ
    2FOVoHaDX146xIIO
    • Gently place the headlight on the ground or place it on a blanket or soft surface to avoid scratching or cracking the plastic.

    • Pull the lightbulb holder out of the socket by twisting it clockwise and pulling outward slowly.

    • Be gentle when pulling out the lightbulb holder to avoid breaking the lightbulb.

  7. O2sBxCRWsYUMTTPX
    O2sBxCRWsYUMTTPX
    HTcnUMlsRnOt5npA
    • Unscrew the bulb by twisting it clockwise and replace!

    • When replacing the lightbulb, don't touch the glass with your bare hand as the grease and salts can cause heat to concentrate. This could reduce the life of the bulb or cause it to shatter.

Conclusione

To reassemble your device, follow these instructions in reverse order.
