2011- 2017 Volkswagen Jetta Alternator Replacement

Scritto Da: Andrew Shutt
  • Commenti: 2
2011- 2017 Volkswagen Jetta Alternator Replacement

Difficoltà

Moderate

Passi

13

Tempo Necessario

1 - 2 ore

Introduzione

This guide will help you safely and correctly replace the alternator from a 2011 - 2017 Volkswagen Jetta.

  1. miZIbPKOs3RXvRs1

    • Latch is located below steering wheel.

  2. vyKTkgqbZOfSVmDa

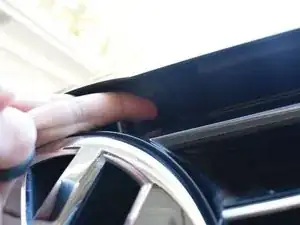

    • Find latch above Volkswagen symbol on grill and open.

  3. QHMdAvjbhUdxM3sj
    QHMdAvjbhUdxM3sj
    j5Vnp2xNZwVKvUM3

    • Use the 10 mm socket wrench to do this step.

    • Loosen the nut on the connector by turning it counter-clockwise.

  4. rbHQuUjfnnomgAJj

    • Use the 10 mm socket wrench to do this step.

    • Loosen the nut on the connector by turning it counter-clockwise.

  5. fNTFlqqRCiQnLMos

    • Ensure that both terminals are clear before continuing.

  6. DA1UH5IqHdPg2bqI

    • The alternator will be on the left side when facing engine​

  7. OTDQpT6AWQFdGMFO

    • The belt loosening bolt is on the left, below the alternator.

  8. 1oQHEmFqQQBbpLYO
    1oQHEmFqQQBbpLYO
    V3QoFKTHXmQktKUO

    • Using 11/16 in. socket, rotate clockwise to loosen the bolt

  9. WXFTEIZRSgM5SxNf

    • Push the belt off of the alternator.

    • Do not completely remove belt from engine.

  10. sPNVjvLoTSFWoEZc
    sPNVjvLoTSFWoEZc
    Qg6bkCiITVbIElM2

    • Locate the 4 screws holding the alternator in place two on the top and two on the bottom.

  11. 6XaPNMwOpv6a6Wj5
    6XaPNMwOpv6a6Wj5
    jVgx3hKKV4YuoH51

    • Using the 1/2 in. socket, remove the screws.

  12. NjxjwNDykAYGvw6A

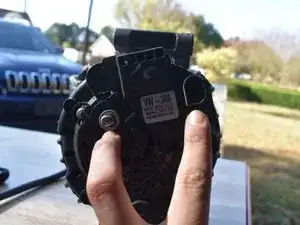

    • Remove cap and electrical connector located on the right side of the alternator before removing the alternator.

    • Photo was taken after the alternator was removed to provide a better picture.

  13. QPHSSh3i3Ih4oAEy

    • Take alternator out of engine by pulling to the left and out.

Conclusione

To reassemble your device, follow these instructions in reverse order.

Autore

Andrew Shutt

Membro da: 15/11/20

337 Reputazione

2 commenti
