2011-2015 Kia Optima Brake Light Replacement

Scritto Da: Jonathan Walborn
  • Commenti: 4
2011-2015 Kia Optima Brake Light Replacement

Difficoltà

Moderate

Passi

6

Tempo Necessario

20 minuti

Introduzione

A working brake light is not only essential for the safety of a motor vehicle, but it is also the law. This guide is designed for changing a 2011-2015 KIA Optima’s rear brake light. Follow the instructions carefully as the process deals with glass and electricity. Be absolutely sure to remove the battery connector before changing the bulb and to handle the replacement with latex gloves.

  1. qUDYqYjeCFH2pd1i
    qUDYqYjeCFH2pd1i
    dgqXjJLElf2ChkdT
    brtFIJlMCJVs43oM

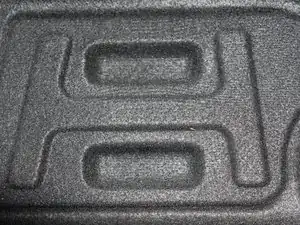

    • Open the trunk and locate the tail light compartment behind the rear wheel well.

    • This guide will serve for both brake lights.

  2. lJONKvhXELaTm1Pr
    lJONKvhXELaTm1Pr
    4GWy2LkLkyLooLIA
    B2XV3CXGrKZCMFUx

    • Squeeze and pull back on the felt-like access panel to expose the tail light assembly.

  3. EGdaOcYCaSWeIEfu
    EGdaOcYCaSWeIEfu
    qTpxQBmuKCQPYN4N
    GeQCBj4RVx5ZfGA1

    • Squeeze down on the top tab of the battery connector. Then, pull the connector out.

    • Be sure to properly disconnect the battery to ensure safety when replacing the bulb.

  4. rEMJHpaTslCLOAds
    rEMJHpaTslCLOAds
    s3IFMhv5JDOZLnF4
    31HkDJGt5M6XfFdO

    • The grey brake light holder is connected to three wires. (Pink, Green, and Black as displayed)

    • Be sure not to pull on the three wires.

    • Twist the holder counter-clockwise using the two protruding tabs. Pull out the holder once unlocked.

  5. 5Frxw62cgxF4BGBX
    5Frxw62cgxF4BGBX
    MSOcxWJHF5T6LXLF

    • Twist the dead bulb counter clockwise to unlock it from the holder.

    • Be sure not to squeeze too hard on the light bulb as it may shatter or break.

    CRUCIAL tidbit of Advice!!! Push down on the bulb and twist counter clockwise cause it's a interlock release type hahaha!!!

    Samuel McMullin -

  6. sgLWFOijlwfeV2pJ
    sgLWFOijlwfeV2pJ
    SC3kB2CAkAaoouvM

    • Be sure to place latex gloves on prior to opening and touching the new bulb.

    • Align the new bulb with the notch in the holder. Place bulb inside holder.

    • Gently push the bulb in and simultaneously twist clockwise to lock it into the holder.

Conclusione

To reassemble your car, follow these instructions in reverse order.

Autore

Jonathan Walborn

Membro da: 18/09/19

244 Reputazione

3 commenti

Perfect instructions. Very easy and fast.

jamie swartz -

Step 5: Twist the dead bulb counter clockwise to unlock it from the holder.

Is incorrect for at least the Canadian model of the Kia Optima. The brake light bulb on the drivers side needs to be pushed in and rotated ~30 degrees counter clockwise to be taken out of the grey bulb holder, I suspect the passenger side is the same.

Secondly for Canada, at least at Canadian Tire the bulb to buy is Sylvania LongLife bulb “2357”

kurt -

I’m not in Canada so I don’t know the difference between Canadian and American but I had to push the bulb in and turn counter-clockwise to remove. But I did purchase both the Sylvania Longlife bulbs 1157A and 2357 but used 1157a.

Samantha Gibson -
