Introduzione

In the case of your 2018 Toyota Corolla LE's battery needing to be replaced, follow these guide instructions.

The battery is the main lifeforce of the car; without it, don't expect it to move unless you're rolling it down a hill in neutral. Without it, the engine, key buttons, and even electric brakes are completely useless.

Car batteries naturally wear down in output with time, going from the factory standard of 12-13 to 8-9 in some years till eventually they give out and need to be recycled.

With this replacement, you'll be able to start up your car once again. Be sure to park your car in a spot which gives you plenty of space in the front. Lifting a car battery doesn't allow much agility as noted in step 6.

Before beginning, place your car in park, engage the parking brake, and power off the ignition.

  1. tUprBPRrApNIMa3O
    • Caution: Wear gloves and a mask as a basic safety precaution to avoid inhaling or touching toxins which may be harmful to your lungs.

    • Car batteries have a voltage comparable to small Duracell batteries; don't work in fear of being shocked.

    • Open the hood and locate your battery.

  2. FIZbJNCeGq4Yy6aL
    • Remove the screws from the brace securing the battery.

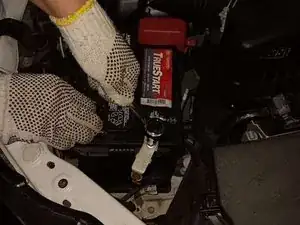

  3. sIJcmbKWOCfTFhTc
    sIJcmbKWOCfTFhTc
    vWoail1dQY3EhCVd
    pHoE5VKomIV6hI3V
    • Disconnect the connector on the right with no coloring or cap.

    • Remove the vertically facing screw to disconnect the battery.

    • Loosen the clamp on the side directly connected to the battery.

    • Move both away from the battery once they've been disconnected/loosened enough to disconnect.

  4. RdNTCCVUtlGNTXPm
    RdNTCCVUtlGNTXPm
    A2VeVUfQKqNOHLac
    CuRQ2ehnIWjULSLS
    • After removing the red cap on the second connector follow the same process you did with the right.

    • Remove the vertical screw first.

    • Loosen the horizontal screw on the side in order to fully free the battery.

  5. cFpe45Y6cDlWLu5m
    cFpe45Y6cDlWLu5m
    GgpaPml4gaGAZTSg
    IYLXC5AUwnXJGore
    • Car batteries are quite heavy so get ready to give a good lift.

    • Ensure you have a good grip on both ends and pull up both sides at once; you don't want the battery to tilt to one side

  6. paOT3fFgXugltlXA
    paOT3fFgXugltlXA
    VmEYtgC4AAGgk1rj
    • Pull out the tray that was holding the battery.

    • Clean off any dust or corrosion formed from use.

    • Place it back using the points on it to indicate how to fit it back in.

Conclusione

To reassemble your device, follow these instructions in reverse order.
