2023 Toyota RAV4 XLE Hybrid Cabin Air Filter Replacement

Scritto Da: Bryan Huinac
  • Commenti: 0
2023 Toyota RAV4 XLE Hybrid Cabin Air Filter Replacement

Difficoltà

Easy

Passi

11

Tempo Necessario

10 - 15 minuti

Introduzione

This is a simple and easy to follow guide on how to replace the cabin air filter in a 2023 Toyota RAV4 XLE Hybrid.

The air cabin filter is responsible to catch any small particles or debris that could have entered your A/C. It is best to replace your cabin air filter every 15,000 miles or 24,000 Km. This can vary depending if your air coming from your A/C smells funny, which the problem is the cabin air filter being over used.

While purchasing the cabin air filter, be aware that you purchase the correct size for the 2023 Toyota RAV4 XLE Hybrid. I have provided a link to purchase the acquired part in this guide.

  1. wUpSEFyNpALEDCo6

    • Open the glove compartment in the passenger seat area.

    • The cabin air filter is located behind the glove compartment.

  2. qXhybZnEsHgUQqtL
    qXhybZnEsHgUQqtL
    3auxTUBtpWoreiQf

    • Carefully detach the support bar from the glove compartment.

  3. xURFqXGmKqNwjX3U
    xURFqXGmKqNwjX3U
    kZQDo2RFgsAglyeH

    • On the side on the glove compartment there is a sign to push inward.

    • Use both hands to push inward to release the plastic holders on both sides.

    • Carefully lower the glove compartment down.

  4. eYFGFkbpBHk2Td4R
    eYFGFkbpBHk2Td4R
    MdrYmMvpAgJcIADY
    RXDUloe6isgpDulb

    • You will have access to the filter compartment and cover.

    • Pinch the right side of the filter cover and pull toward you; it should come out with ease.

    • Be aware of the signs on the cover when replacing it in Steps 7-9.

  5. PM3J4J4jdWHjGBWG
    PM3J4J4jdWHjGBWG
    SCirB4iyKInXxrsh
    UPbpUv1VhOY2utxe

    • Pull the compartment completely out.

  6. 2oKwKXeTf13CIQn6
    2oKwKXeTf13CIQn6
    FPcOrjOZEb2b34U2
    4JhnHsluBaWVBIMA

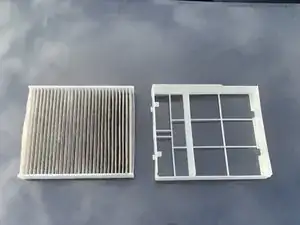

    • Pull out the old filter from the compartment.

  7. DpuLCqFmEUxgCGQQ
    DpuLCqFmEUxgCGQQ
    qWCnUylFdGgdo2eo

    • Grab your new filter and place it into the compartment.

    • On the side of the filter, there are signs of the direction the filter should be placed in the direction of airflow. If placed incorrectly, your A/C will not filter the air well.

    • Pinch to adjust the filter in the compartment.

  8. EeMCnA2tMjhOAQ3b
    EeMCnA2tMjhOAQ3b
    SSfqPyj1CyIZIkDv

    • Insert the compartment back into the filter compartment.

    • Make sure you put the compartment upwards in the direction the arrow is pointing.

  9. VZInJLBgKsKM5MJF
    VZInJLBgKsKM5MJF
    eZVgdP6EOtcFC5sI

    • Place the cover back on the filter compartment.

    • Follow the arrow to appropriately place the cover in place.

  10. CSs4sPCMMVQW2TVj
    CSs4sPCMMVQW2TVj
    mTYuDOhdSUKRSSVy
    LcJD33eCZC5pj3VZ

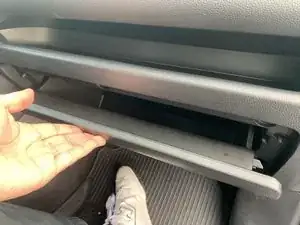

    • Do not forget to attach the support bar back to the glove compartment.

    • You can close the glove compartment. The plastic holders should click back to place.

  11. w1TkuY1E2oaEb1WL

    • You have finally replaced the cabin air filter!

Conclusione

By the end of this guide you have successfully replaced the cabin air filter on a 2023 RAV4 XLE Hybrid. Enjoy your clean air!
