8BitDo SN30 Pro+ Controller Triggers Replacement

Scritto Da: Brian W
  • Commenti: 2
8BitDo SN30 Pro+ Controller Triggers Replacement

Difficoltà

Easy

Passi

10

Tempo Necessario

8 - 15 minuti

Introduzione

This guide is used for the replacement the triggers on your 8BitDo SN30 Pro+ controller. This guide is also used for the replacement Conductive Rubber Pads: L1, L2, R1, R2.

  1. XIsQaUojfjKRFIEH
    XIsQaUojfjKRFIEH
    OoylTICR5iPVqO6h
    EG6Q6BRyeg3VEgye

    • Place the controller face down.

    • Remove the battery cover.

    • Remove rechargeable battery or AA batteries.

  2. EcES2K3gVOglfFh2
    EcES2K3gVOglfFh2
    u1SHIARkKfpvsBKc

    • Remove L2 and R2 trigger buttons by pushing them away from the grips.

  3. SGl2PR1Tecmis3xL
    SGl2PR1Tecmis3xL
    IeEnJVVxxvrfmAjs

    • Use Tweezers to uncover two screws under the label in the battery compartment.

    • Use a T6 screwdriver to remove the four 7.3 mm screws securing the rear cover.

  4. LiHEaZv1o15rUJN3
    LiHEaZv1o15rUJN3
    tkwQtTGCqbKLuMaP
    OZkWk1tOtiGRntFi

    • At the end of each grip, pry apart the covers.

    • Use fingernail or opening pick to undo the two top clips.

    • One clip next to L button.

    • One clip next to R button

    • Undo the final clip between the joysticks.

  5. mOnHuWFDIDZ3jCcs

    • Carefully move the rear cover away and from the front cover. Place it to the left.

    • Do not completely separate. The two halves are still attached via a white ribbon cable.

    I just used this guide to open a Pro2 controller, the only difference was the ribbon cable was between the analog sticks. Otherwise it went perfectly.

    Dunch -

    You have to be careful not to break the clip on the middle bottom (between the analog sticks)

    Kelvie Wong -

  6. tQORKJ21JyKqvbS3
    tQORKJ21JyKqvbS3
    YQj4uVE4Kn1fWQ5p
    KnEXLWi4MpCebwfE

    • Unlock the ribbon cable by push open the black plastic tab.

    • The tab will slide about 1.5mm

    • Pull the ribbon cable out of the connector in the direction of the cable.

  7. gM2R1xsR2t6egGFy
    gM2R1xsR2t6egGFy
    FxpnwveAgOOOovAf
    PIk1bvLcYFaCtLpo

    • Use a Phillips screwdriver to remove the seven screws securing the main circuit board.

    • Six 10.1mm screws

    • One 5.8mm screws

  8. Cf1oSOc6iEgLKYnh
    Cf1oSOc6iEgLKYnh
    MucZFKxvZNdk1ynP
    RcqAZdrh1nWnKvbv

    • Slide the R buttons up and off its peg.

    • Slide the L button up and off its peg.

    • Remove the main board by rotating it towards the USB-C port. Then lift it out.

  9. fZoXP2mkhVjYyTPW
    fZoXP2mkhVjYyTPW
    guaBO1qJiqEGQvus
    5kU4VkpElZcMFYGk

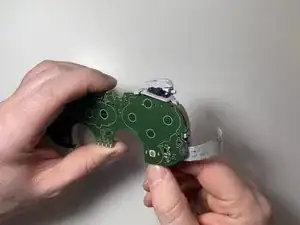

    • Release the three clips holding the trigger assembly to the main board.

    • Repeat with the other side.

  10. hiyqvYGCbEqNld41
    hiyqvYGCbEqNld41
    eQhuvaDF1mM3FysO
    JJwDwHMQUWhZReRm

    • Bend the plastic tab over the locking hook. It helps to push the trigger back slightly, with your other hand.

    • Gently pry the each side of the trigger out of the round clips.

    • Both conductive pads are now accessible.

Conclusione

To reassemble your device, follow these instructions in reverse order.
